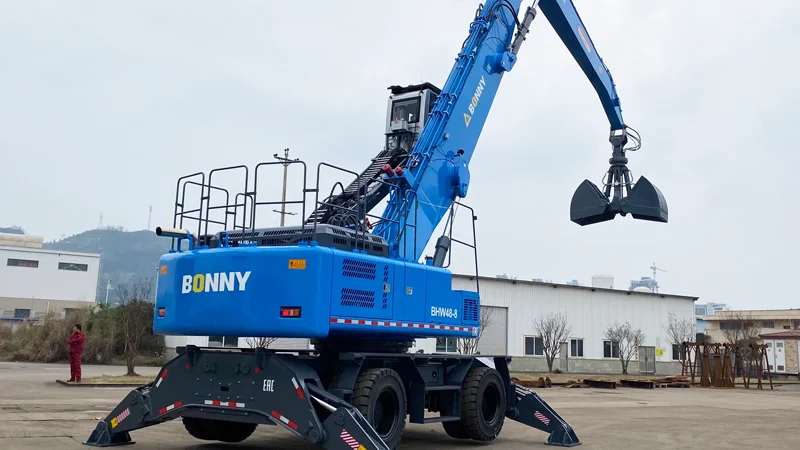

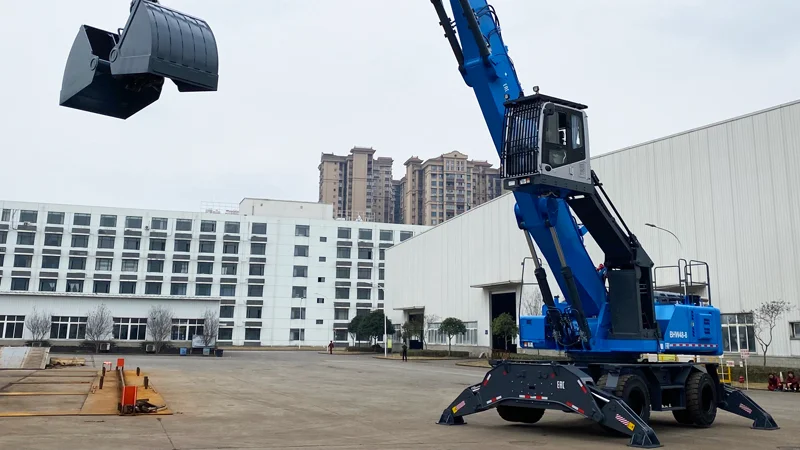

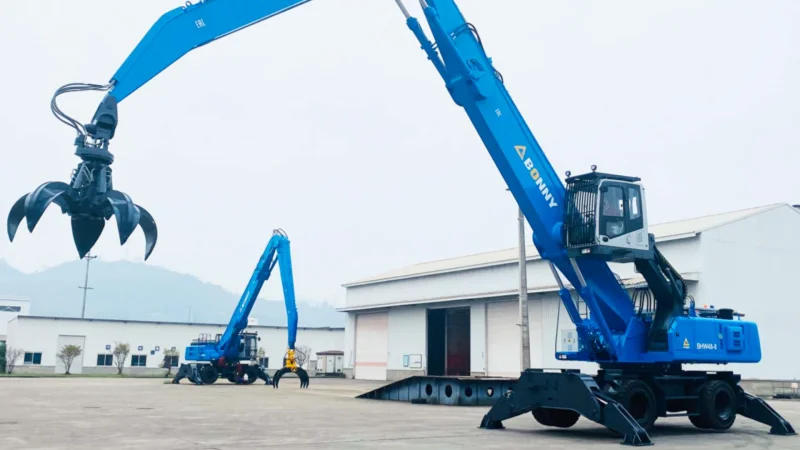

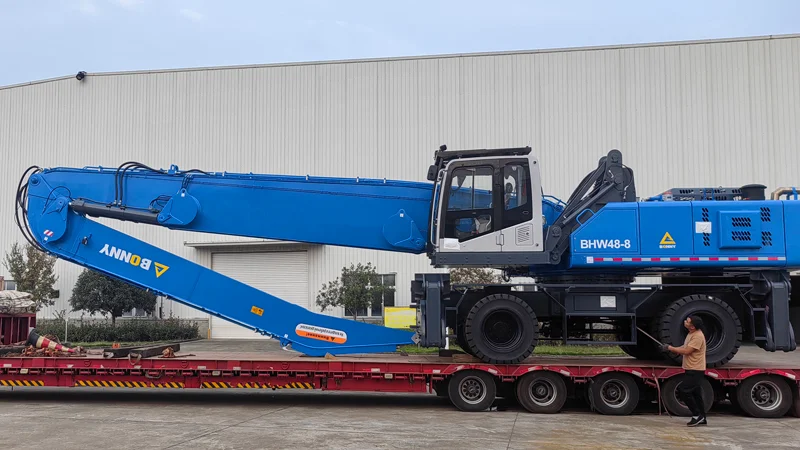

48T Mobile Material Handler (BHW48-8) - Wheeled

The BHW48-8 is a 48-ton super-heavy-duty diesel wheeled material handler, the flagship of the BHW wheeled series, powered by a Cummins QSM11-C335 diesel engine delivering 250 kW at 2000 rpm with a 600 L fuel tank. It offers abundant power reserves and extended endurance — the highest power and tonnage in the BHW wheeled series — engineered for high-intensity bulk material handling in the largest-scale work environments.

The hydraulic system features dual-pump confluence with a maximum flow of 2×324 L/min and 32 MPa operating pressure, with a 565 L hydraulic oil tank ensuring smooth compound movements, strong gripping force, and reliable, stable operation. The slewing system delivers a maximum speed of 8.7 r/min for steady, efficient cycles.

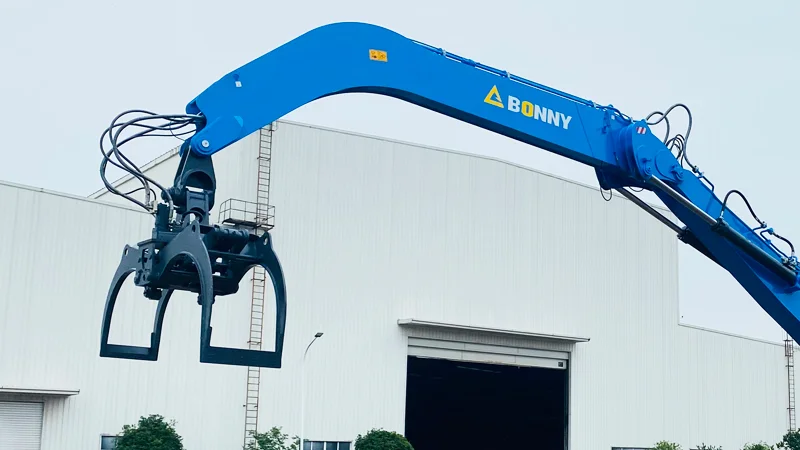

The wheeled undercarriage features a two-speed travel system: first gear at 4.0 km/h for heavy-load tractive effort, and second gear at 20.0 km/h for rapid relocation, with 28% gradeability. Equipped with a 5-tine semi-closed orange peel grab of 0.8 m³ capacity with 360° rotation, a 10,500 mm boom and 8,300 mm stick, the extended boom delivers an unprecedented working envelope — maximum grabbing reach of 19,272 mm, height of 16,895 mm, and depth of 8,000 mm — all the largest in the entire series. Powerful, long-reaching, and agile, it is the ultimate wheeled heavy-duty solution for super-large scrap yards, port bulk terminals, waste-to-energy centers, heavy industrial stockyards, and high-platform loading operations.
