belt conveyor pulleys

Conveyor Pulleys: Drum Pulley & Winged Pulley

Discover Our Full Range of Conveyor Pulleys By Category

The belt conveyor pulleys are the important part of belt conveyors. Depending on the working roles, conveyor pulleys will install at different point. Our conveyor pulleys can be used in a variety of complex working environments. MMSTACKER is a conveyor pulley manufacturer and provides conveyor pulley solutions for quarrying, mining, ports, power, grain, aggregate and other industries.

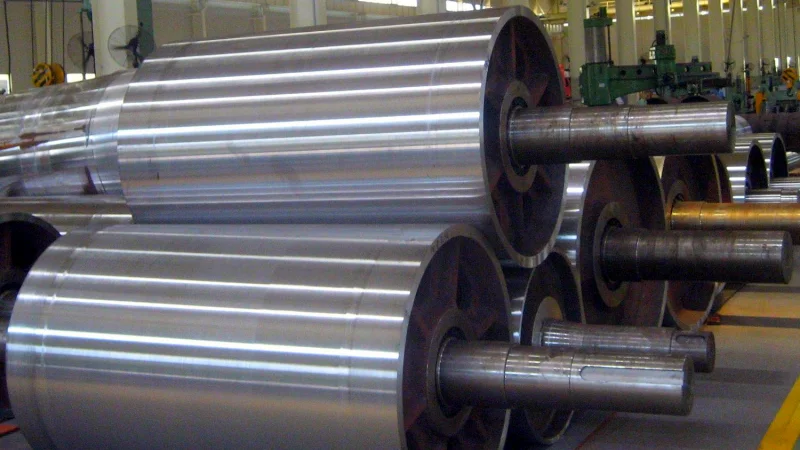

Conveyor Pulley Processing

We provides conveyor drum pulleys designing, manufacturing, aseembly, testing, etc. We can produce pulleys according to your drawings.

Send A Request Catalog Download

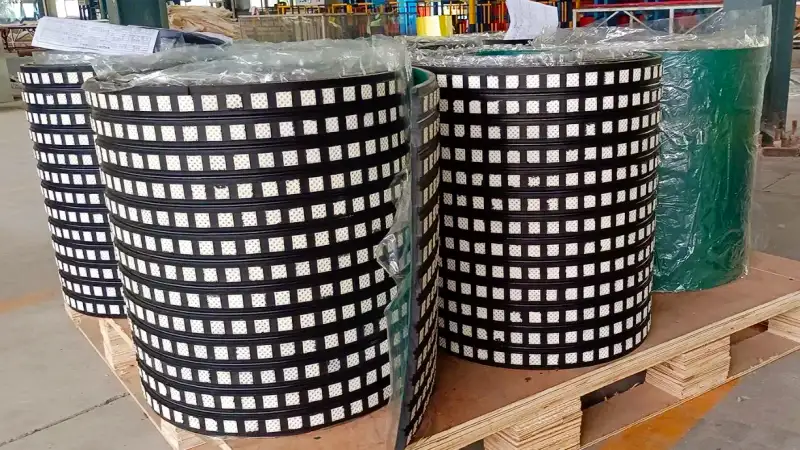

Conveyor Pulley Lagging Rubber

The function of conveyor pulley lagging rubber is to increase friction with the industrial conveyor belt while protecting the shell from damage.

Send A Request Catalog Download

Belt Conveyor Pulley Options

MMSTACKER can provide belt conveyor pulleys to meet the different applications like quarrying, mining, engineering, etc. You can get pulleys list below.

Conveyor Pulley Types

Understanding the different types of conveyor pulleys and their applications ensures optimal selection for specific industries and operational requirements. Whether for heavy-duty mining or precision food processing, selecting the right pulley type contributes to the efficiency, reliability, and longevity of conveyor systems.

  • Heavy Duty Pulley
  • Mine Duty Pulley
  • Quarry Duty Pulley

Conveyor Pulley Roles

Conveyor pulleys are a critical component in conveyor systems, designed to provide tension, drive motion, and change the direction of conveyor belts. Their functionality and durability play a significant role in ensuring efficient material handling across various industries.

  • Head Pulley
  • Tail Pulley
  • Snub Pulley
  • Drive Pulley
  • Bend Pulley
  • Take-up Pulleys

Pulley Bushes Options

  • QD (Quick Disconnect)
  • XT
  • TL (Taper Lock)
  • KLD (Key-less Locking Device)

Pulley Hubs Options

  • Welded Hub
  • Integral Hub
  • Profile Disc,
  • Turbine End Disc
  • T-Section

Drum Lagging Options

Rubber lagging is an essential feature of drum pulleys, improving their performance, durability, and efficiency. Selecting the right type of rubber lagging depends on operational requirements, environmental conditions, and material properties.

  • Diamond Lagging Rubber
  • Ceramic & Rubber Lagging Rubber
  • Smooth Lagging Rubber
  • Chevron Profile Lagging Rubber

Lagging Thickness Options

The thickness of conveyor pulley lagging is a crucial factor that influences the performance and durability of conveyor systems. Choosing the right lagging thickness helps enhance friction, improve power transmission, protect the pulley, and reduce belt wear. The appropriate thickness depends on the conveyor's operating conditions, load, tension, and material properties.

  • Light-Duty Applications: 6 - 10 mm.
  • Medium-Duty Applications: 10 - 12 mm.
  • Heavy-Duty Applications: 12 - 20 mm.

FAQ About Conveyor Pulleys for Bulk Material Belt Conveyors

1. What is a conveyor pulley?

A conveyor pulley is a rotating component that drives, redirects, or maintains tension in a belt conveyor. It is essential for reliable bulk material handling in mining, quarrying, ports, and industrial plants.

2. What types of conveyor pulleys are used in bulk material handling?

Common types include drive pulleys, head pulleys, tail pulleys, bend pulleys, snub pulleys, take-up pulleys, and winged pulleys. Each type serves a specific function in the conveyor system.

3. What is the difference between a head pulley and a tail pulley?

The head pulley is usually located at the discharge end of the conveyor and often serves as the drive pulley. The tail pulley is typically located at the loading end and redirects the belt onto the return run.

4. What is a drive pulley in a belt conveyor?

A drive pulley transfers torque from the drive system to the conveyor belt. Its diameter, shaft, shell, and lagging must be designed for the belt tension, transmitted power, and operating conditions.

5. What is a winged pulley used for?

A winged pulley has a spaced wing structure that helps release trapped material rather than allowing it to accumulate between the belt and pulley. It is commonly used in selected tail-pulley applications involving carryback or material buildup.

6. What is conveyor pulley lagging?

Conveyor pulley lagging is a protective surface layer, commonly made from rubber or ceramic-embedded rubber, applied to the pulley shell. It improves traction, helps reduce belt slippage, and protects the pulley surface.

7. How do I choose the right pulley lagging?

Diamond-pattern rubber lagging is commonly used to improve traction, while ceramic lagging may be suitable for high-tension or demanding drive applications. Selection depends on belt tension, moisture, contamination, drive duty, and wear conditions.

8. What is the difference between a heavy-duty pulley and a mine-duty pulley?

Heavy-duty and mine-duty pulleys are designed for demanding operating conditions, but their specifications vary by manufacturer. Selection should be based on belt tension, load, duty cycle, shell and shaft design, bearing arrangement, and required service life.

9. How do I select the correct conveyor pulley diameter?

Pulley diameter depends on belt construction, belt tension, carcass or steel-cord requirements, transmitted torque, and manufacturer recommendations. The pulley must be compatible with the belt and the conveyor design.

10. Can conveyor pulleys be customized for bulk material conveyors?

Yes. Conveyor pulleys can be manufactured to specified belt widths, diameters, face lengths, shaft dimensions, hub designs, lagging types, and applicable engineering standards.

11. What causes conveyor pulley belt slippage?

Belt slippage can result from insufficient traction, inadequate belt tension, material or water contamination, or an unsuitable drive configuration. Appropriate lagging, correct tensioning, and proper maintenance help reduce slippage.

12. How do I maintain conveyor pulleys?

Regularly inspect lagging wear, shell condition, shaft alignment, bearing temperature, unusual noise, and material buildup. Addressing abnormal vibration, slippage, or bearing problems early can help prevent unplanned downtime.

13. What standards are available for conveyor pulleys?

Conveyor pulleys can be designed to applicable CEMA, DIN, ISO, or project-specific requirements. Confirm the exact standard, dimensions, load calculations, and acceptance criteria before ordering.

14. What information is needed to order a conveyor pulley?

Provide the pulley type, belt width, pulley diameter, face length, belt tension, drive power where applicable, shaft dimensions, lagging specification, operating environment, required standard, and quantity. Drawings are recommended for replacement pulleys.

Why to Choose Our Conveyor Pulleys?


  • Versatility

    With our comprehensive product range, our rollers maximize the output and safety of your conveyor operations. The drum diameter ranges from 400mm to 1600mm.


  • Reliable One-stop Partner

    We can provide services of conveyor pulley design and conveyor manufacturing, and we can send pulleys to your operation site quickly.


  • Service Greater Than 50,000 + Hours

    Our conveyor pulleys are made of high-quality steel. Use laser welding machine for welding. And the rubber lagging operation is carried out by skilled workers.


  • Reduced Downtime

    Smart and simple design that makes parts efficient, robust and maintenance friendly. This reduces downtime due to drum failure.
