12T Mobile Material Handler (BHW12-8) - Wheeled

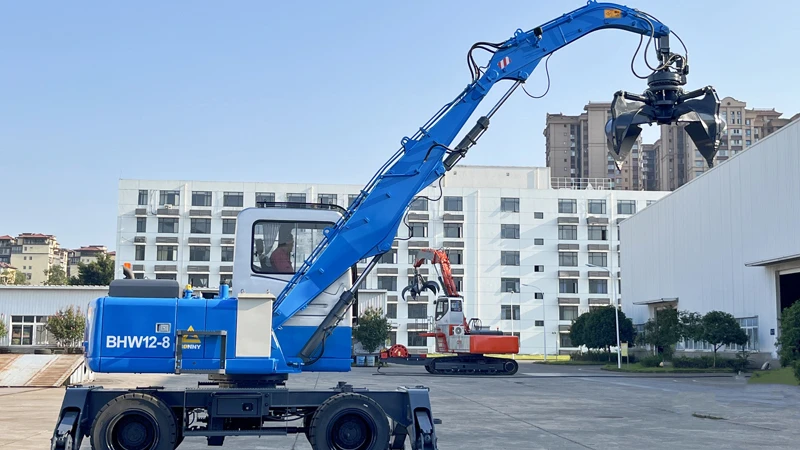

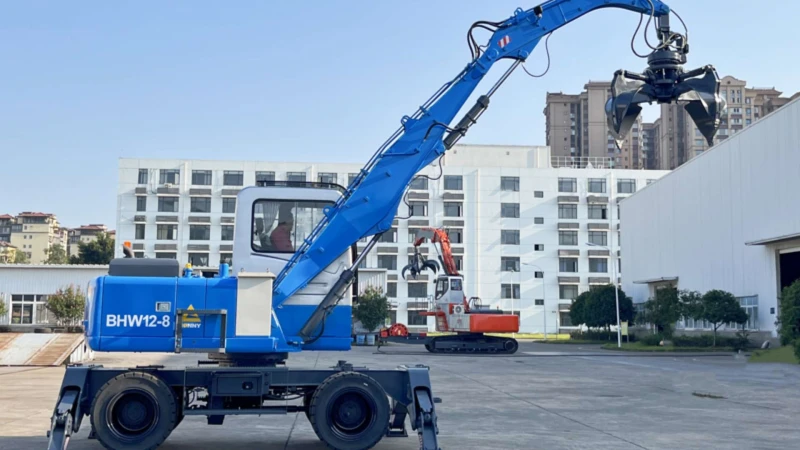

The BHW12-8 is a 12-ton compact diesel wheeled material handler powered by a 66 kW diesel engine (2200 rpm) with a 122 L fuel tank. Its compact structure and excellent mobility make it ideal for bulk material handling in small and medium-sized work environments.

The hydraulic system features a single-pump design with a maximum flow of 165 L/min and 28 MPa operating pressure, with a 108 L hydraulic oil tank ensuring responsive and stable operation. The swing system delivers a maximum slewing speed of 10.0 r/min for efficient cycle times.

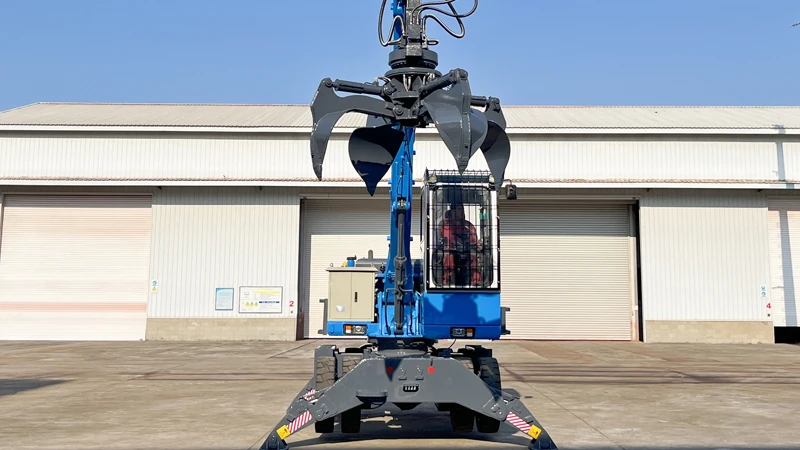

The wheeled undercarriage offers excellent site adaptability, with a maximum travel speed of 25.0 km/h for rapid relocation between job sites and 45% gradeability to handle varied terrain. Equipped with a 4-tine semi-closed grab of 0.35 m³ capacity with 360° rotation, a 4,600 mm boom and 2,600 mm stick, it offers a maximum grabbing reach of 8,024 mm, height of 6,857 mm, and depth of 2,573 mm. Compact, agile, and fast to relocate, it is widely suited for small scrap recycling operations, waste transfer stations, construction site cleanup, and small-to-medium material stockyards.
