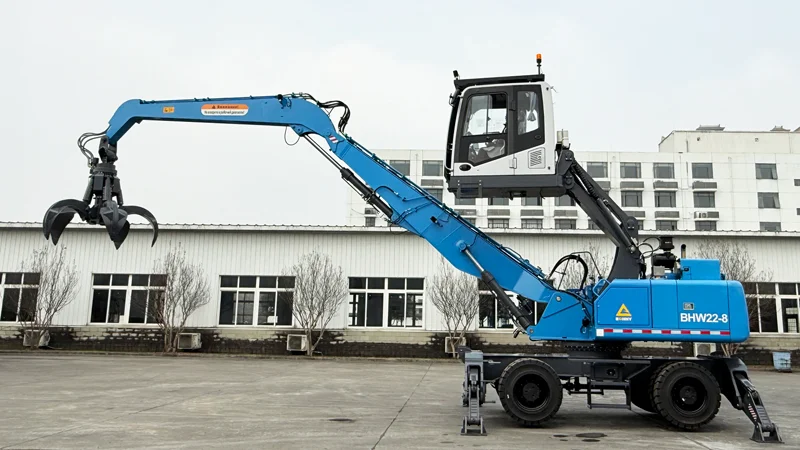

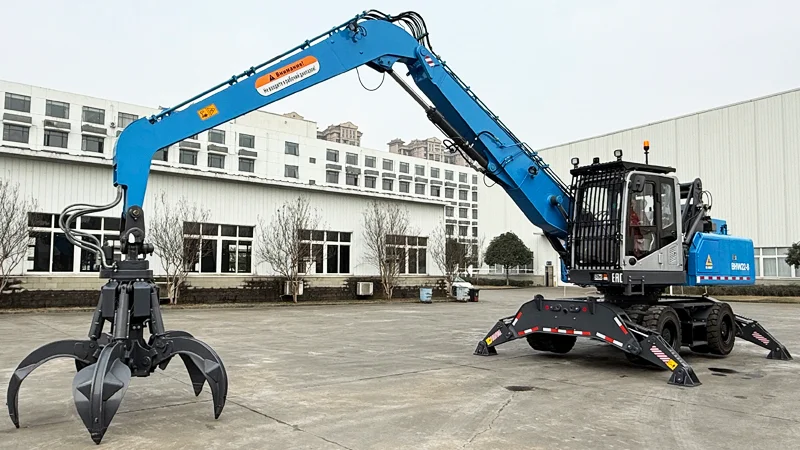

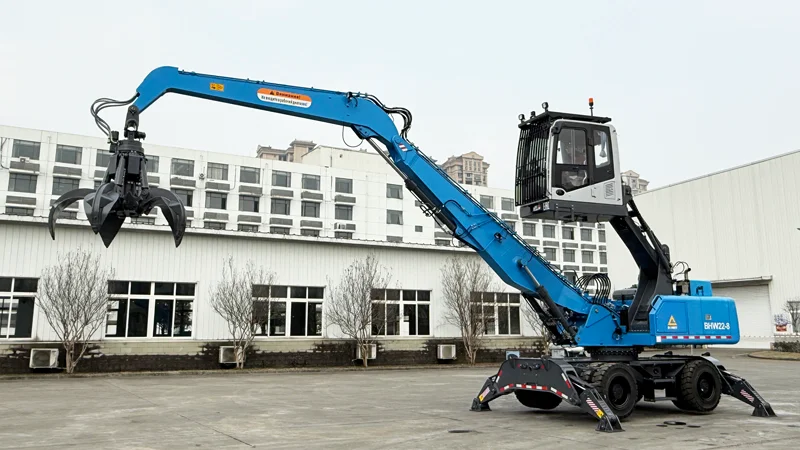

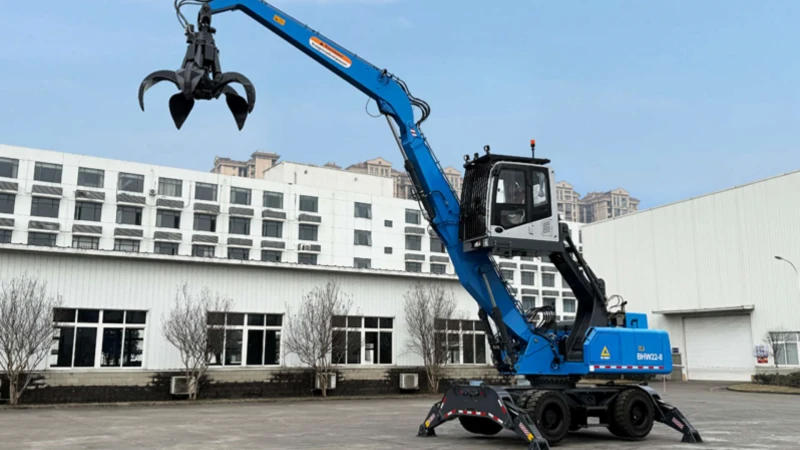

22T Mobile Material Handler (BHW22-8) - Wheeled

The BHW22-8 is a 22-ton medium-duty diesel wheeled material handler powered by a 93 kW diesel engine (2000 rpm) with a 281 L fuel tank. It delivers abundant power and extended endurance, suited for high-intensity bulk material handling in small-to-medium work environments.

The hydraulic system features dual-pump confluence with a maximum flow of 2×140 L/min and 32 MPa operating pressure, with a 207 L hydraulic oil tank ensuring smooth compound movements, strong gripping force, and reliable, stable operation. The swing system delivers a maximum slewing speed of 11.0 r/min for efficient cycle times.

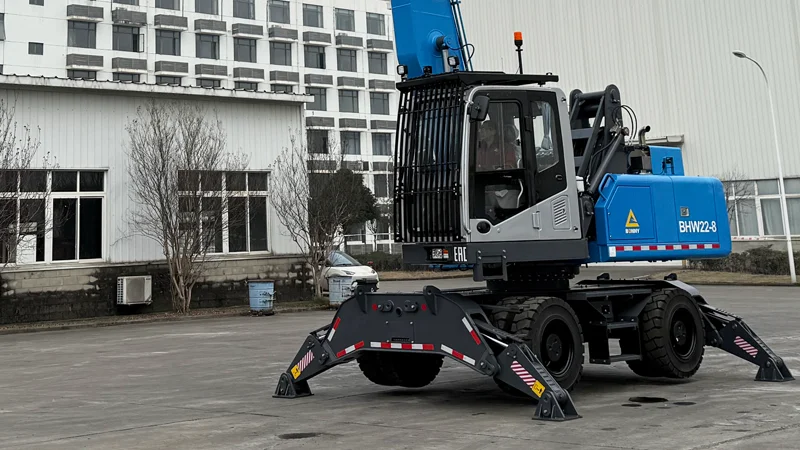

The wheeled undercarriage offers excellent site adaptability and mobility, with a maximum travel speed of 20.0 km/h for rapid relocation between job sites and 38% gradeability to handle varied terrain. Equipped with a 5-tine semi-closed grab of 0.6 m³ capacity, a 5,500 mm boom and 4,800 mm stick, it offers a maximum grabbing reach of 11,017 mm, height of 8,805 mm, and depth of 4,382 mm — a broad working envelope. Agile and fast to relocate, it is widely suited for scrap recycling, waste transfer stations, bulk stockyards, port terminals, and construction sites.
