TL Series Telescopic Chute

The TL Series is built for heavy-duty maritime operations, offering capacities up to 5,800 m³/h. Featuring reinforced bellows and high-speed retraction, it is the primary choice for large-scale vessel loading and port terminals.

Telescopic Loading Chute Catalog

  • Product Introduce
  • Video
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

When it comes to handling high load capacity applications, our TL/TN series telescopic loading spout is the ideal choice. The travel range of telescopic loading chute can reach 25m, and the maximum throughput capacity can reach 5800 cubic meters per hour.

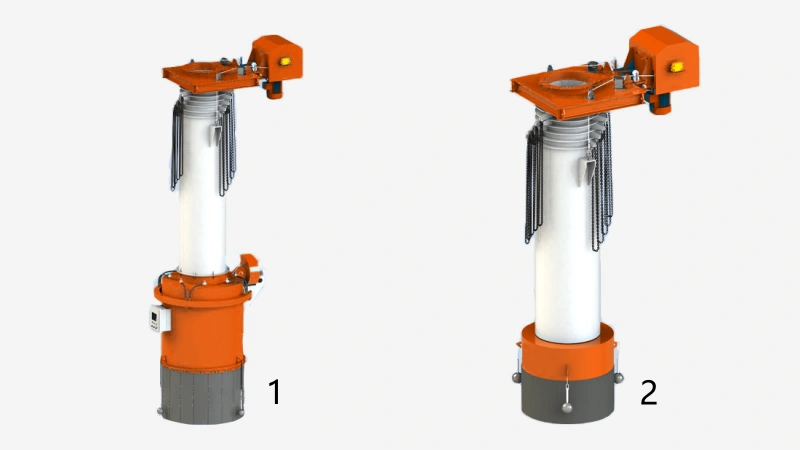

Telescopic Chute Configuration

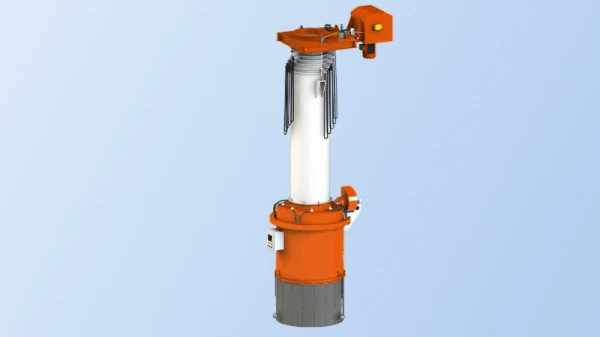

  1. telescopic chute with dust collector.
  2. telescopic loading chute without dust collector.

The Main Components

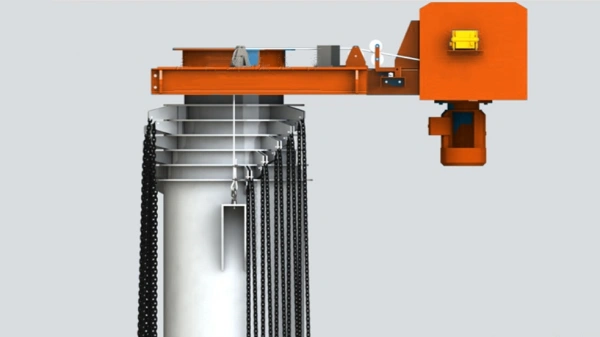

  1. Gearbox and Motor
  2. Rubber Skirt for Dust Controlling
  3. Material Level Inspection System
  4. Spouts

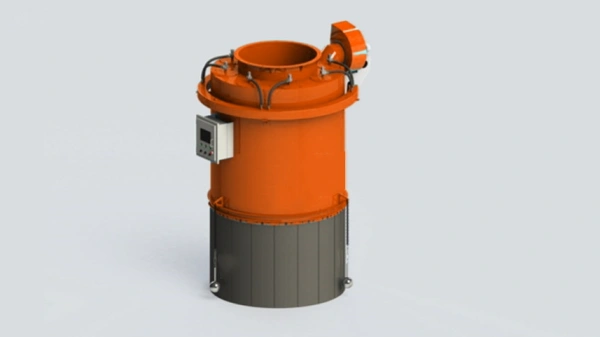

  5. Dust Collectors (Optional)
  6. Rotating Timer (Optional)

Video

Play Now

Advantages & Highlights

  • Heavy Duty Design

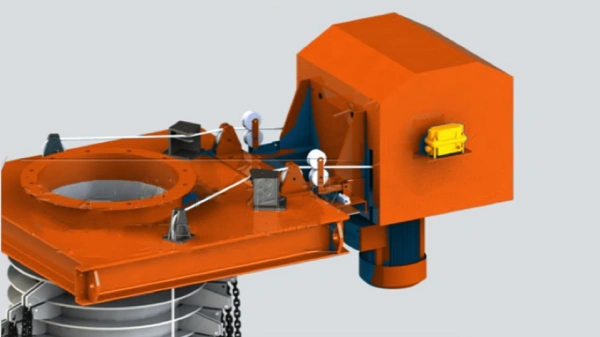

    The heavy-duty drive device is three times larger than the heavy-duty selection, and the operation is stable and reliable.

  • High Quality Reducer

    The reducer is important. Use high-quality reducer to provide high efficiency, energy saving, stability and reliability.

  • Rubber Skirt for Dust Controlling

    The dust-proof skirt is made of high-quality natural rubber and styrene-butadiene rubber, which has strong elasticity. Dust-proof skirts can effectively prevent dust from flying and spilling.

  • High Automatic Design

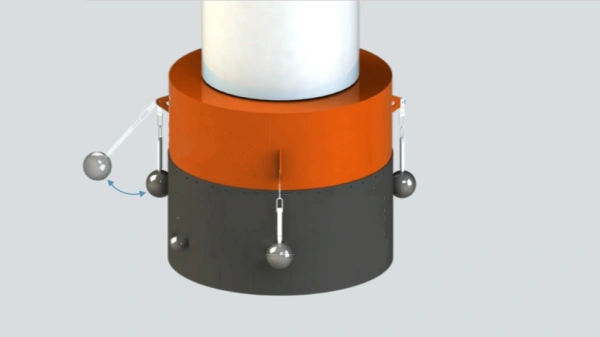

    The material level automatic detection and lifting system has high accuracy. It can effectively maintain the appropriate distance between the lower edge of the telescopic spout and the material.

  • Optional chute materials

    The chute material is suitable for different loading materials. The loading chute can be produced from Q345, NM400 and 304/316 stainless steel.

  • Dust Remover Available

    According to the environmental protection requirements of the project, dust-proof canvas tubes, special dust collectors, and rotating throwing heads can be selected.

Application & Gallerys

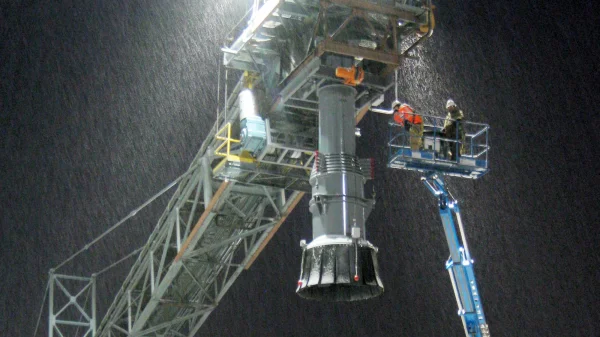

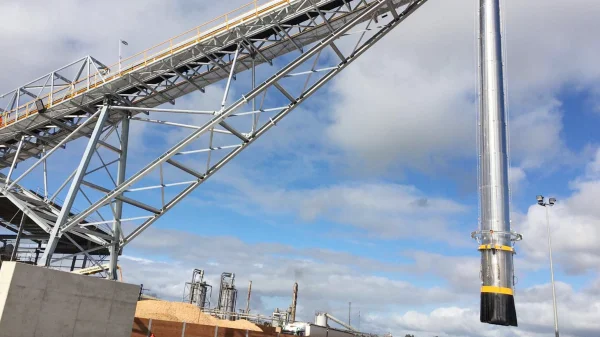

These high loading spout suitable for ship loader and train loading system. TL/TN telescopic chutes are used not only for loading ships and barges in ports, but also for controlling dust generated during the stacking process of conveyor systems.

  • Loading material like Mineral Ores, Aggregate, Grains, Coal, Fertilizer, Clincker, etc.
  • Telescopic chute for ship and barge loading,

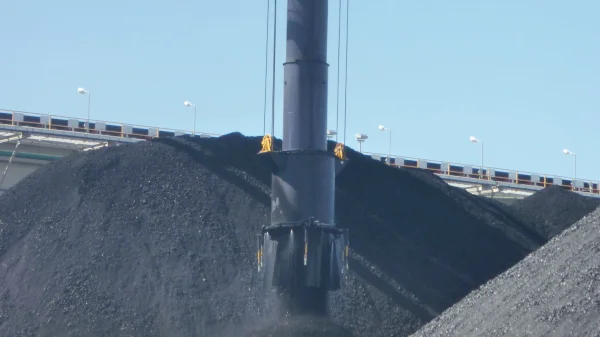

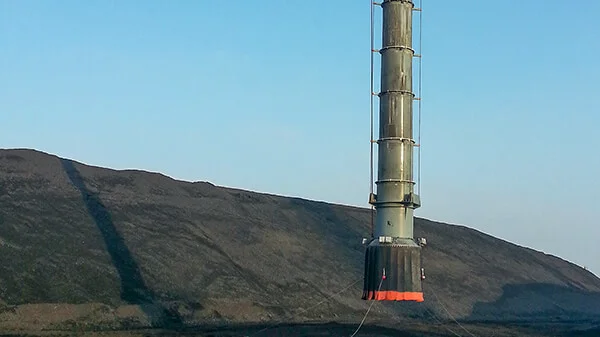

  • Telescopic chute for stockpiling conveyor.
  • telescopic loading chute
  • telescopic loading spout
  • telescopic chute
  • telescopic spout

Technical Parameters

TL/TN Series Telescopic Loading Chute (Spout)
Model TL600 TL800 TL1000
Feeding Port Diameter (mm) Φ600 Φ800 Φ1000
Max. Throughput (m³/h) 2100 3800 5800
Lump Size (mm) 150 200 250
Max. Length (mm) 25 25 25
Telescoping Speed (m/min) 4-8 4-8 4-8
Chut Material Q345/NM400/304/316
Control Automatic/Manual/Remote Control
