TE Series Telescopic Cascade Chute

Specialized for fine powders, the TA Series features a dual-path design that separates material flow from dust extraction. It ensures zero-emission loading for hazardous or aerated materials like cement, lime, and chemicals.

Telescopic Loading Chute Catalog

  • Product Introduce
  • Video
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

The loading of powder materials will generate a large amount of dust. With the tightening of environmental protection policies. The loading of powder requires a dust suppression device. Our TE series of telescopic loading spouts can be your best choice.

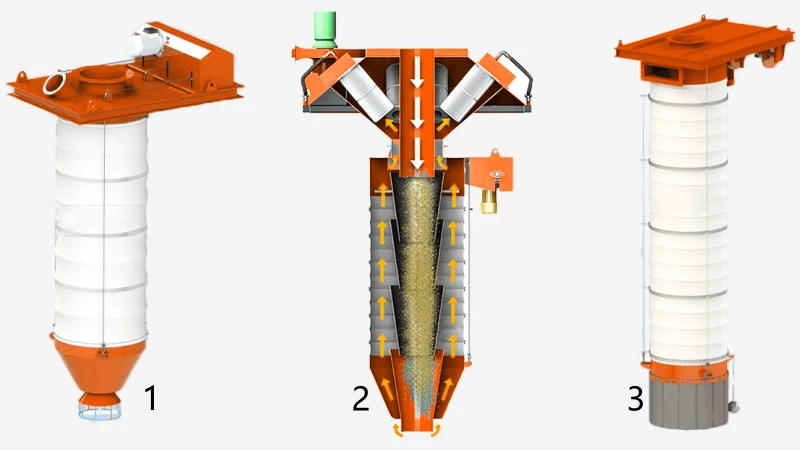

Telescopic Chute Configuration

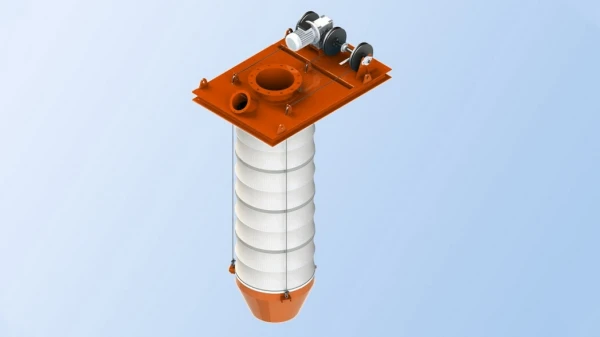

  1. TE200/TE300 for Tanker Truck and Tanker Ship Loading
  2. TE Telescopic Loading Chute with Dust Collector.

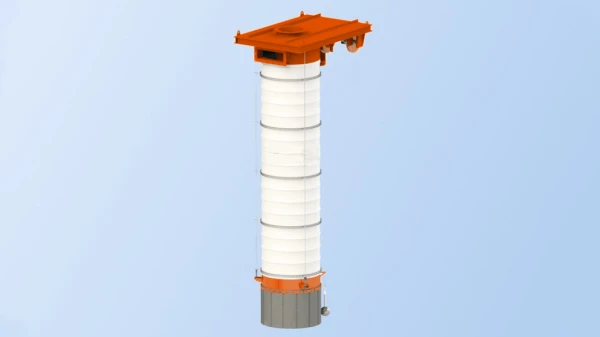

  3. TA450/TA600 for Top Open Truck and Ship Loading

Components of TE series Loading Spouts

  1. Gearbox and Motor
  2. Loading Spouts
  3. Material Level Inspection System
  4. Rubber Skirt for Dust Controlling

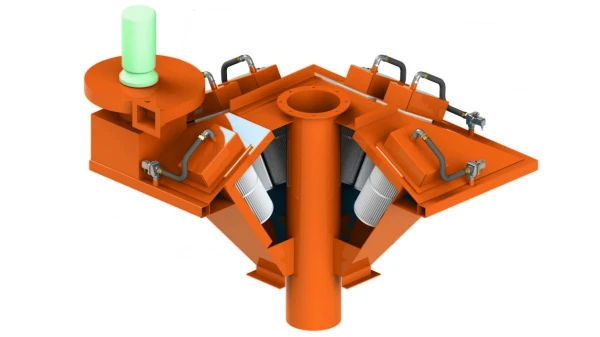

  5. Dust Collectors (Optional)

Video

Play Now

Advantages & Highlights

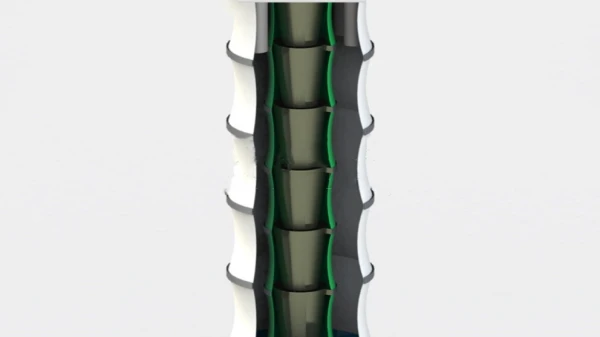

  • Double-layer Telescopic Tube Design

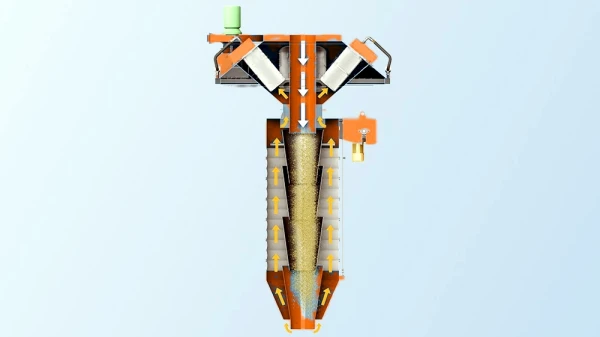

    The double-layer telescopic tube design separates the descending material flow and the rising dust-laden air flow. The double-layer channel has greater negative pressure, better sealing, and no dust leakage.

  • Wide Range of Loading Solutions

    TA200/TA300 suits for loading tank truck which is widely used in transporting fine power. TA450/TA600 is able to be used in loading top-open truck.

  • High Automatic Loading Design

    Our TA series telescopic loading spouts will automatically lift through feedback single of material level inspection system. It will help reduce labor to decrease running cost.

  • Tube Material Optional

    We can supply telescopic filling nozzles made of specific materials such as Q345, NM400, 304/316 stainless steel, even for highly corrosive materials.

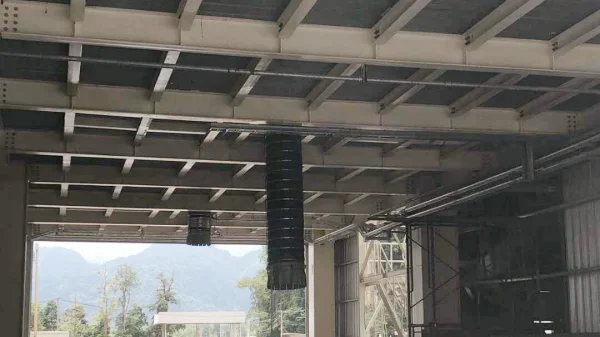

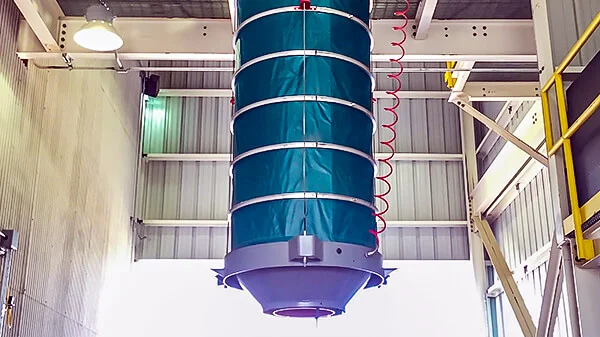

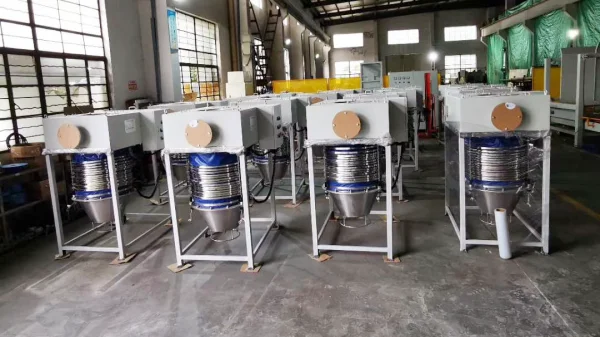

Application & Gallerys

Our telescopic loading spouts are especially designed for loading fine powder which may cause dust air polution during loading process.

1. Dry Fine Powders

You can use it to handle fine powders like:

  • dry powder,
  • dry ash,
  • cement,
  • dust removal ash,
  • chemical powder.

2. Loading Applications

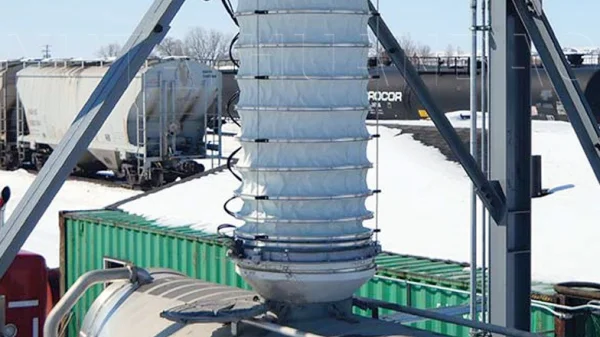

  • tank truck loading
  • open top truck loading
  • ship and barge loading
  • telescopic loading spout for dry fine powder loading
  • telescopic loading spout for dry fine powder loading
  • telescopic loading spout for dry fine powder loading
  • telescopic loading spout for dry fine powder loading

Technical Parameters

TE and TA Series Telescopic Loading Chute
Modle TE200 TE300 TA450 TA600
Max. Throughput (m³) 100 200 500 800
Feeding Port Diameter (mm) Φ200 Φ300 Φ450 Φ60
Materials Power Granular, Powder
Dust removal suction port size (mm) 340*120 500*150
Telescopic stroke (mm) 1000 ~ 3000 1000 ~ 3000
Telescoping Speed (m/min) 5 3.5
Power (Kw) 0.55 0.75~1.1
Central Chute Material Q355 / SUS304 / NM400 Q355 / SUS304 / NM400
Control Automatic/Manual/Remote Control
