TC Series Telescopic Chute

The TC series telescopic loading chute is designed for high throughput applications, with loading capacities ranging from 560 m³/h to 4000 m³/h. The telescopic chute length can reach 25m.

  • Product Introduce
  • Video
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

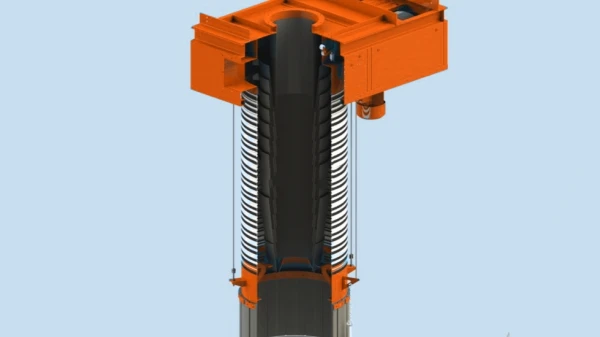

The TC series telescopic chute is suitable for various types of large-throughput loading applications. It consits of main components like:

  1. Gearbox and Motor
  2. Drums and Steel for Lifting

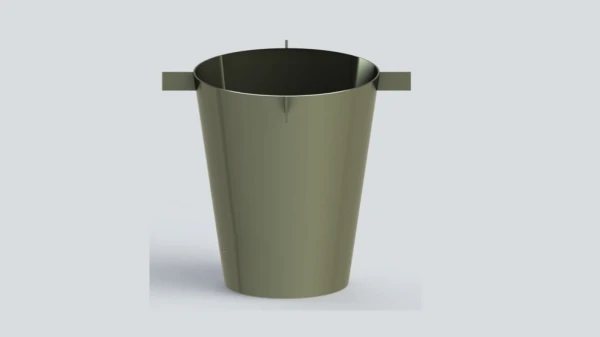

  3. Loading Spouts

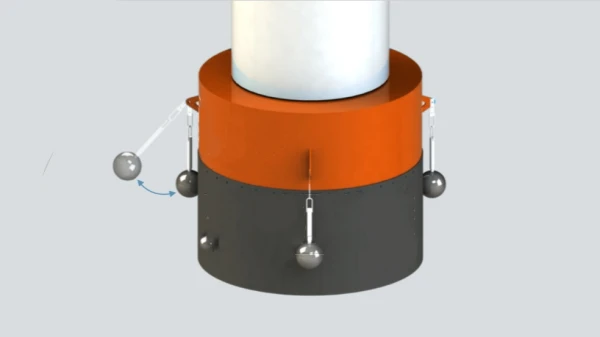

  4. Material Level Inspection System
  5. Dust Collectors (Optional)

Video

Play Now

Advantages & Highlights

  • Long Working Life Design

    High-quality gearboxes, motors, steel wires, and drums provide efficient and stable lifting operations.

  • Automatic Lifting Design

    Using high-precision material level sensing, it can be used with a lifting device to ensure a certain distance betwee telescopic spout and the surface of loaded material.

  • Optional Loading Tube Materials

    The center loading tube is made of Q345, NM400, and 304/316 stainless steel, which can adapt to different materials that need to be loaded.

  • Configurable Dust Removal Device

    Equipped with an integrated dust collector, our telescopic chute can also load dust-prone materials. The remover can be integrated into the discharge port.

Application & Gallerys

It is suitable for a variety of powder and bulk material loading and unloading scenarios:

  • Coal loading,
  • Aggregate and sand loading & stockpiling,
  • Mineral ore loading & stcokpiling,
  • Chemical products loading,
  • Grains loading & stockpiling
  • Other loading.

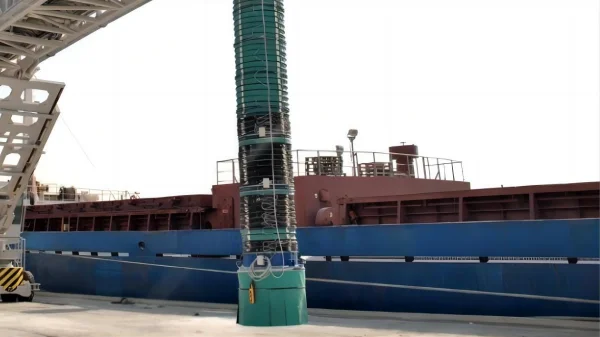

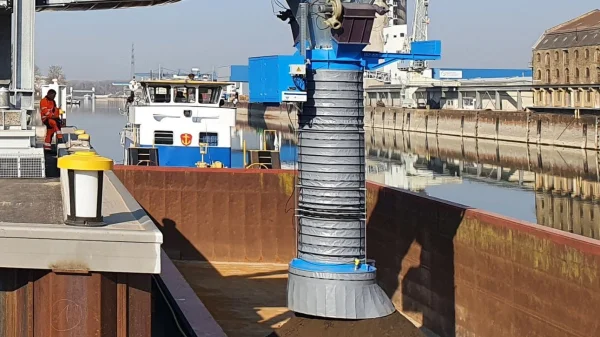

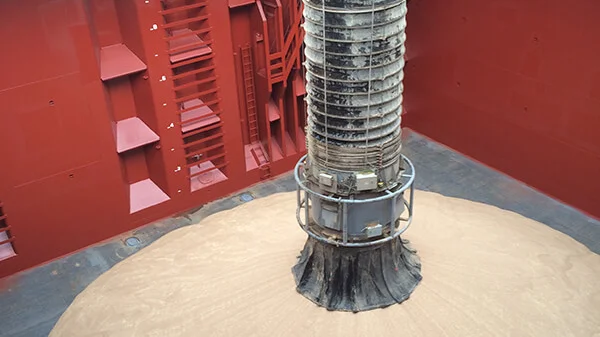

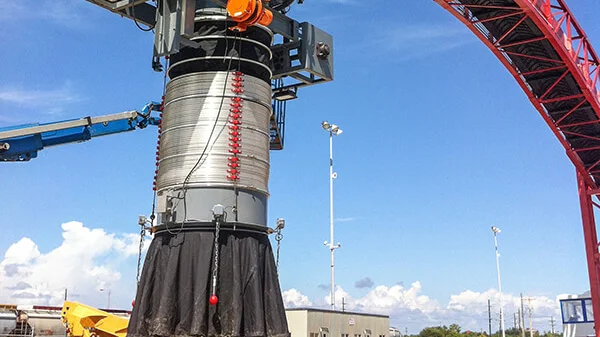

  • telescopic loading chute for loading solution of ship, train, truck
  • telescopic loading chute for loading solution of ship, train, truck
  • telescopic loading chute for loading solution of ship, train, truck
  • telescopic loading chute for loading solution of ship, train, truck

Technical Parameters

TC Series Telescopic Loading Chute
Modle TC28 TC36 TC50 TC66 TC88
Max. Throughput (m³/h) 560 900 1550 2600 4600
Lump Size (mm) ≤50 ≤70 ≤100 ≤140 ≤190
Feeding Port Diameter (mm) Φ350 Φ450 Φ600 Φ850 Φ1150
Dust removal air volume (m ³/h) 4000 5000 7500 10000 12000
Dust removal suction port size B*C (mm) 200*260 200*330 200*500 200*660 200*800
Telescoping Speed (m/min) 1.6~11
Central Chute Material Q345/SUS304/NM400
Remote Control Standard Configuration
