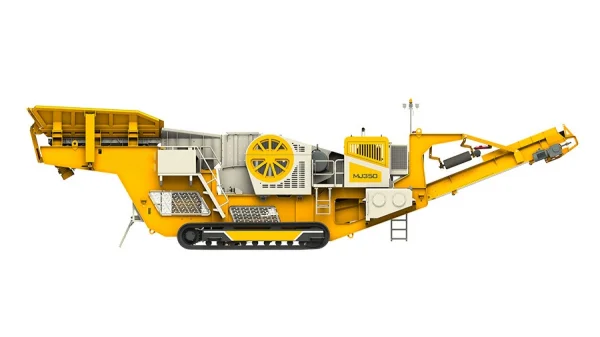

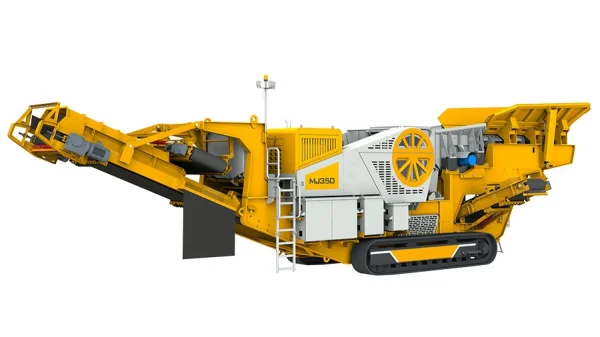

MJ Series Mobile Jaw Crusher

MJ series mobile jaw crusher is a portable jaw crusher for primary crushing in a crushing and screening plant. The crushing capacity ranges from 80 to 570 t/h. The feed size can reach 700 mm. This mobile primary crusher is used in various industries, including construction, mining, and recycling, to crush hard and abrasive materials like stone, concrete, asphalt, and ores.

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

A mobile jaw crusher is a portable crushing plant that uses a jaw crusher as its primary component to break down large rocks and materials into smaller, more manageable pieces. As a mobile jaw crusher manufacturer, our crushers are designed for easy transportation and maneuverability with tracks or wheels, making them ideal for dynamic work environments where material needs to be crushed on-site.

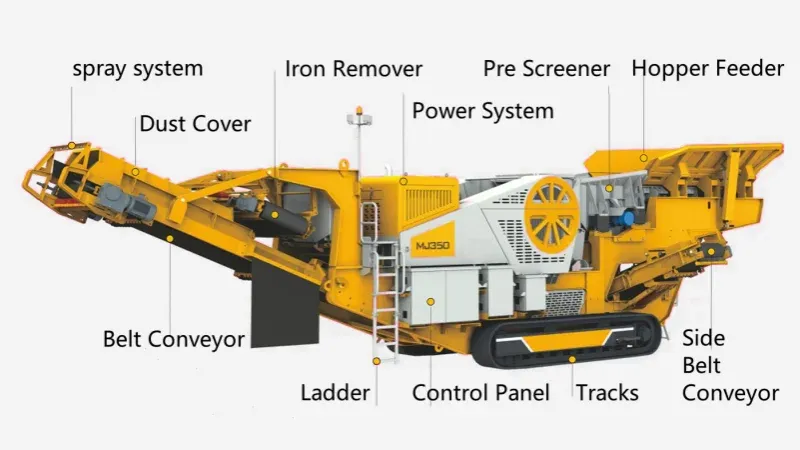

MJ series mobile jaw crusher plant is a hard rock crushing machines. It is often arranged in the first stage of a crushing and screening plant. It mainly consists of:

mobile jaw crusher for stone crushing plant

  • Large hopper for receiving rocks from a wheel loader or an excavator.
  • Vibrating feeder conveyor for large rock conveying.
  • Pre screener for primary screening.
  • Power system can use diesel engine or external electric.
  • Iron remover for iron removing.
  • Dust cover for environment protecting.
  • Spray system for dust controlling.
  • Walkway and ladder for maintenance.
  • Belt conveyors.
  • PLC control system.
  • Tracks for easily moving.

Advantages & Highlights

  • High Mobility for Moving

    Mounted on wheels or tracks, mobile jaw crushers can be easily transported and relocated to different job sites.

  • Large Feeding Size

    The maximum lump size can reach 700 mm. It can be fed by excavator and mobile material feeder.

  • Large Output Size

    The output size can reach 275 mm. The discharge size of the mobile jaw crushing station is adjustable

  • Large Capacity

    Equipped with powerful jaw crushing units to handle tough materials. The primary crushing capacity can reach 600 t/h.

  • Suitable for a Wide Range of Materials

    MJ mobile jaw crusher can crush hard and abrasive materials like stone, concrete, asphalt, and ores.

  • Durable Structure

    QB355 steel plate for hopper and sturdy structure for frame.

Application & Gallerys

MJ series mobile jaw crusher is often working as primary mobile crusher in a mobile crushing and screening plant for industries like mining, quarrying, highway/railway, road and bridge construction, etc. It also can be use as secondary crusher. It has wide range of applications.

  • Mining ore crushing
  • Quarrying rock crushing
  • Construction waste recycling, including concrete, asphalt, and other construction debris
  • Aggregate Processing with limestone, river stone, basalt, etc.

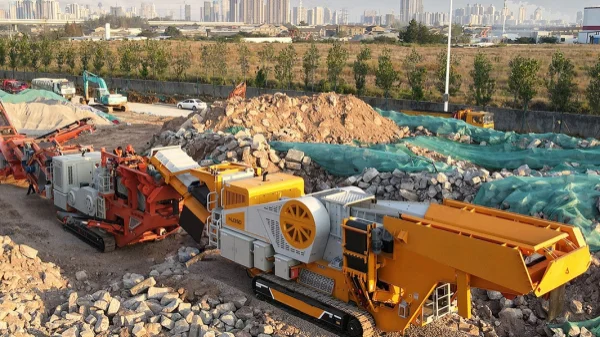

  • mobile stone crushing plant for primary crushing
  • mobile stone crushing plant for primary crushing
  • mobile stone crushing plant for primary crushing
  • mobile stone crushing plant for primary crushing

Technical Parameters

Model MJ-150 MJ-260 MJ-350E MJ-350 MJ-350S MJ-550
Hopper Feeder
Volume (m³) 4 6 6 6 6 9
Feeding Height (mm) 4200 4350 4350 4350 4350 4500
Feeding Size (mm) 460 560 630 630 630 700
Feeding Capacity (t/h) 250 450 450 450 450 650
Jaw Crusher
Jaw Crusher Model C93 C106 C113 C113 C113 C120
Feeding Size（mm） 930×580 1060×700 1130×750 1130×750 1130×750 1200×870
Ouput Size（mm） 40-175 70-200 70-200 70-200 70-200 70-275
Belt Conveyor
Main Conveyor Belt Width（mm） 1000 1200 1200 1200 1200 1400
Main Conveyor Stacking Height（mm） 3200 3307 3307 3307 3200 3200
Side Conveyor Belt W×H（mm） 650×2196 650×2196 650×2196 650×2196 / 650×2196
Driving Methods External motor reducer
General Data
Total Power (kw) 106.3 149.8 149.8 149.8 138.4 197.8
Main Power (kw) 75 110 110 110 110 160
Crushing Capacity (t/h) 80-335 150-500 160-570 160-570 160-570 175-600
Waling Speed (km/h) 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1 0.6-1
Total Weight (t) 40 48 55.5 52 44 60
Transportion Dimension L×W×H(mm) 12450×3000×3500 16354×3384×3725 16354×3384×3725 16354×3384×3725 13636×3160×3634 17600×3100×3800
