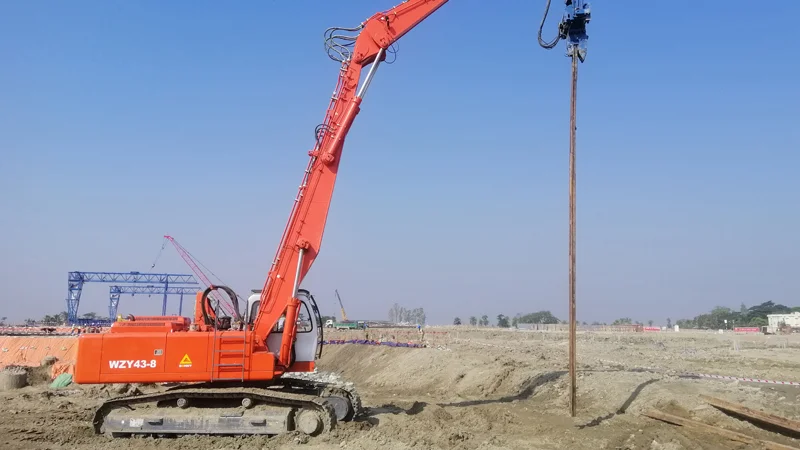

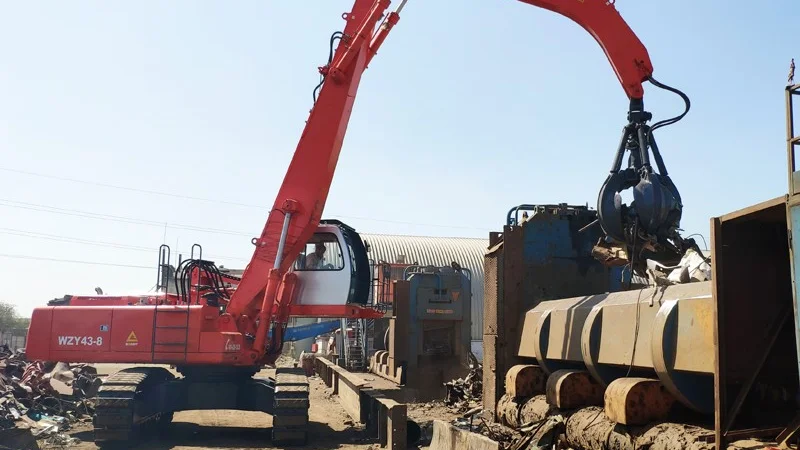

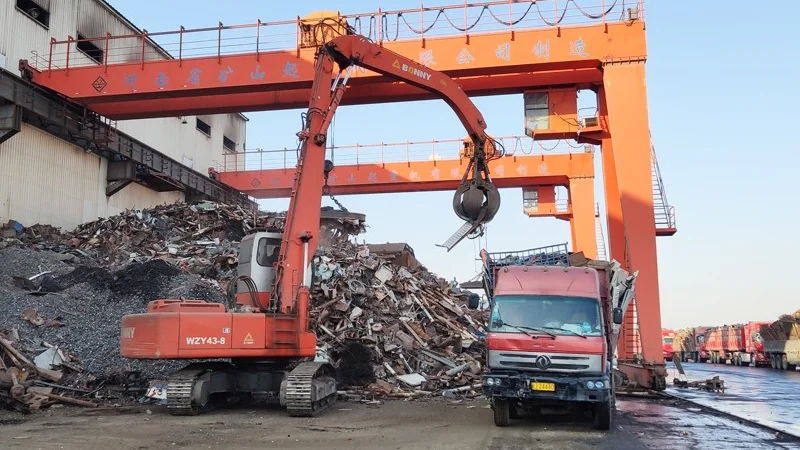

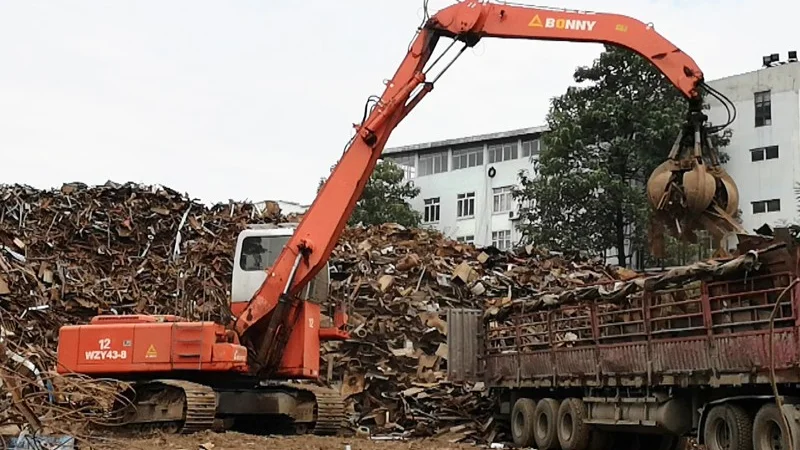

43T Mobile Material Handler (WZY43-8) - Tracked

The WZY43-8 is a 43-ton heavy-duty diesel tracked material handler powered by a Cummins QSB6.7-C240 diesel engine, delivering 179 kW at 2000 rpm with a 458 L fuel tank — engineered for high-intensity, large-scale continuous operation.

Its hydraulic system features dual-pump confluence with a maximum flow of 2×280 L/min and 30 MPa operating pressure. Hydraulic pilot control ensures smooth compound movements and abundant gripping force, while the 410 L hydraulic oil tank maintains thermal balance for sustained heavy-duty stability.

The tracked undercarriage provides low ground pressure and excellent mobility across diverse terrain. A two-speed travel system (3.0 / 4.9 km/h), 8.6 rpm slewing speed, and a fast 15–20 s working cycle deliver outstanding efficiency. Equipped with a 5-tine semi-closed orange peel grab of 1.0 m³ capacity, an 8,200 mm boom and 6,000 mm stick, it offers a maximum grabbing reach of 15,330 mm and height of 12,838 mm, with depth of 7,128 mm — the extended boom delivers an exceptional working envelope, making it the ideal heavy-duty solution for long-reach, high-stacking operations in large scrap yards, port bulk terminals, waste-to-energy centers, and heavy industrial stockyards.
