18T Mobile Material Handler (WZY18-8) - Tracked

This is a small tracked mobile material handler using diesel power.

Max. Reach: 10.28M
Operation Weight: 18t
Engine Output: 91kW
Power Source: Diesel
Moving Type: Tracked

  • Product Introduce
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

The WZY18-8 is an 18-ton tracked material handler powered by a Cummins QSF3.8T3 diesel engine, delivering 91 kW at 1750 rpm with a 210 L fuel tank for extended continuous operation.

Its hydraulic system features dual-pump confluence with a maximum flow of 2×140 L/min and 30 MPa operating pressure. Hydraulic pilot control ensures precise, responsive operation, while the 216 L hydraulic oil tank maintains thermal stability.

Performance highlights include a 13.5 rpm slewing speed, 3.4 km/h travel speed, and a fast 13–15 s working cycle. Equipped with a 5-tine semi-closed orange peel grab (0.6 m³), it offers a maximum grabbing reach of 10,280 mm, height of 8,170 mm, and depth of 4,680 mm — ideal for handling scrap metal, bulk materials, and municipal waste.

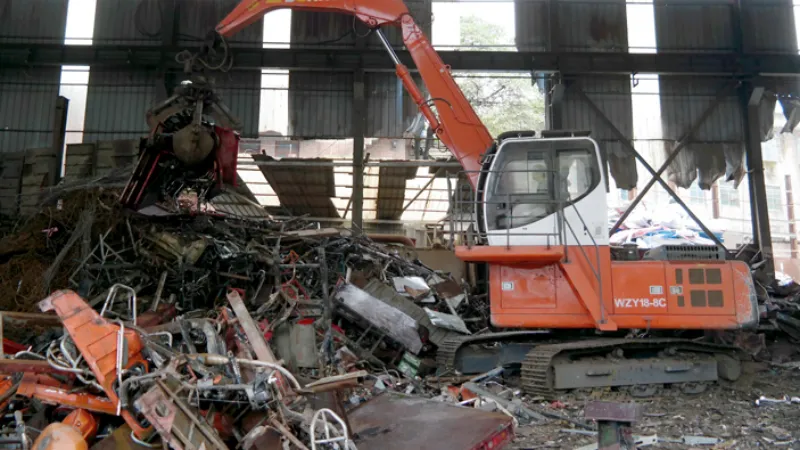

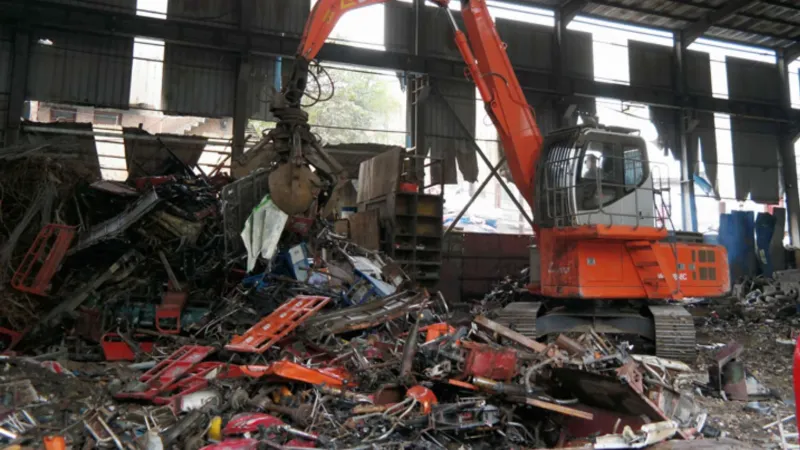

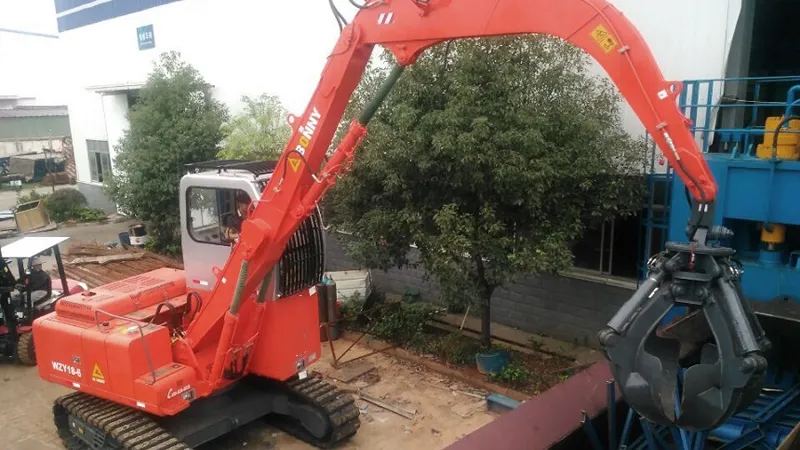

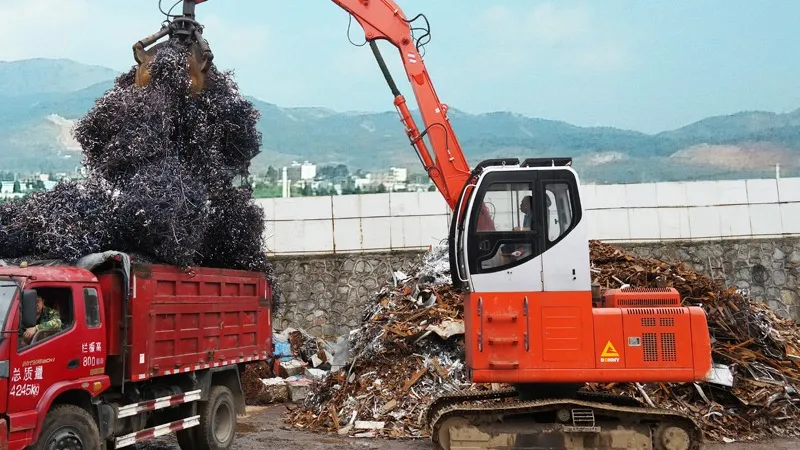

Application & Gallerys

Key Industries Using Material Handlers

  • Ports & terminals
  • Mining & quarrying
  • Cement & power plants
  • Steel mills
  • Recycling facilities
  • Fertilizer plants

Key Mains Using Material Handlers

  • Coal, ore, scrap metal
  • Wood-chips, biomass
  • Port ship loading/unloading
  • Recycling plants

Technical Parameters

No. Item Unit Data
1 Machine weight t 18
2 Diesel engine Model   QSF3.8T3
Rated power/speed kW/rpm 91/1750
Fuel tank capacity L 210

3
Hydraulic system		 Max. flow rate L/min 2×140
Max. operating pressure MPa 30
Control type   Hyd. pilot control
Hydraulic oil tank capacity L 216

4
Machine performance		 Slewing speed rpm 13.5
Travel speed km/h 3.4
Cycle time of working s 13-15
5 Working data Boom length mm 5500
Stick length mm 3800
Orange peel grab capacity m3 0.6
(semi-closed, 5-tine)
Max. grabbing reach mm 10280
Max. grabbing height mm 8170
Max. grabbing depth mm 4680
