portable transfer conveyor for bulk material transferring
Home > Products > Portable Transfer Conveyor

Portable Grasshopper Conveyor

The Grasshopper Conveyor is a versatile mobile link conveyor designed for the efficient, long-distance transfer of bulk materials. Whether used in mining heap leaching or port terminal transfer, these portable conveyors provide a cost-effective and rapidly deployable solution for continuous material flow. The conveying capacity is up to 2000t/h, and the mobile conveyor length is ranging from 12m to 45m.

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

Our portable grasshopper conveyors provide a cost-effective, eco-friendly solution for long-distance material transfer. By replacing high-cost load and haul operations—including dump trucks and wheel loaders—these transfer conveyors significantly reduce fuel, maintenance, and labor expenses. Highly flexible, they can operate independently or link with ground/field conveyors in zig-zag or in-line configurations to suit any site layout.

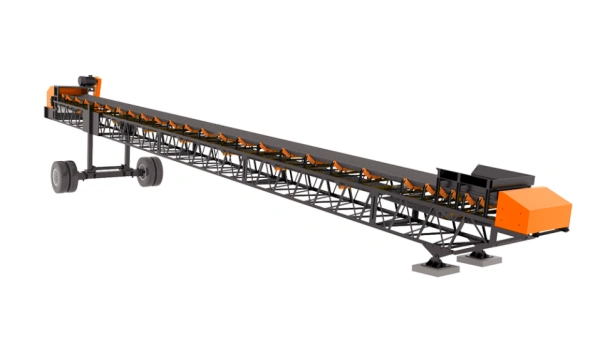

Main Components of Grasshopper Conveyors

  1. Conveyor Iders and Pulleys
  2. Conveyor Control System
  3. Heavy Lattice Steel Frame
  4. Rubber Belt
  5. Sealed Feedboot
  6. Integrate Power System (Optional)
  7. Side Skirting (Optional)
  8. Conveyor Covers (Optional)
  9. Head Discharging Chute (Optional)
  10. Tracks or Wheels (Optional)
  11. Safety Features

Advantages & Highlights

  • Wide Range of Conveying Length

    Range of conveyor length to suit different conveying layout compared to overland conveyors.

  • Tracked or Wheeled Design

    These portable transferring conveyors can be mounted on tracks or wheels for easy moving in site.

  • Fast to Set Up

    Fast move in or out when in using or not using. Quickly set up within 10 minutes.

  • Dust Controlling Devices

    Dust controlling devices is available on feed-in point, transferring point, and telescopic chute.

  • Large Conveying Ability

    The conveying capacity can reach 2000t/h. The lump sizes is up to 300mm (12”) material.

  • Cost Saving & Less Civil Investment

    Reduce fuel cost and operating cost up to 70%. Less civil investment requirements than fixed conveyors.

Application & Gallerys

These conveyors are designed to be easily moved and positioned to create a temporary conveyor system that can be adjusted as needed for different projects or stages of material handling.

1. Mineral Mining

  • Material Transfer: They are used to transfer materials such as ore, coal, and overburden from one point to another, especially over uneven terrain.
  • In-Pit Crushing and Conveying: Used to transport crushed material from the crushing site to the main conveyor or stacking system.
  • Heap Leaching: Acts as a crucial link between the primary conveyor and the radial telescopic stacker, ensuring a steady flow of ore to build flat-top leaching piles.

2. Aggregate Handling

  • Stockpiling: They facilitate the creation of stockpiles by transferring materials from the processing plant to the storage area.
  • Link Processing Equipment: Link to primary and secondary crushing machines within quarries.

3. Port & In-land Terminals

  • Link from truck unloader or hopper feeder to mobile shiploader in port or in-land terminals.
  • Link to mobile ship loading conveyor.
  • Link from warehouse to port for ship loading and unloading.

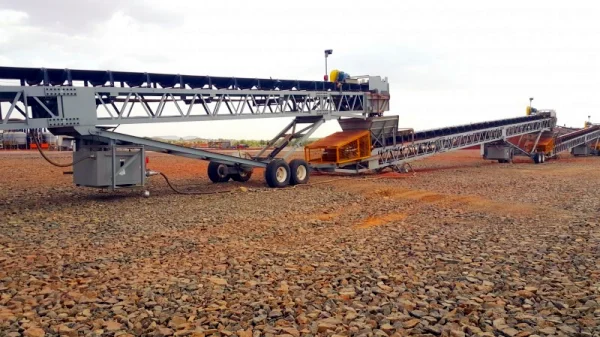

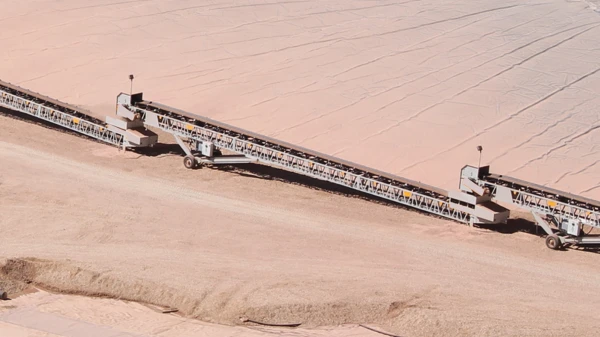

  • Grasshopper Conveyor for Mining Heap Leaching
  • Mobile link conveyor units for port terminal bulk transfer

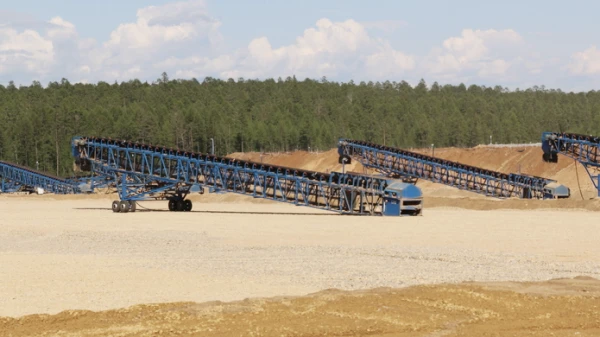

  • Mobile Link Conveyor for Mining and Ports

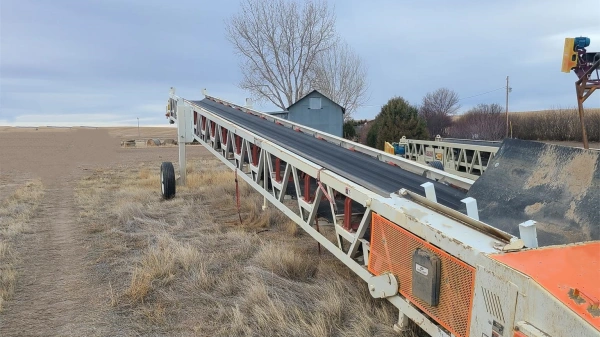

  • Portable Transferring Conveyor for Material Handling

Technical Parameters

Models Conveyor Length (m) Belt Width (mm) Capacity (t/h)
<800 800 1000 1200 1400 1600
GS15 15 Y Y Y Y Y Y 0-3000
GS18 18   Y Y Y Y Y 0-3000
GS21 21   Y Y Y Y Y 0-3000
GS24 24   Y Y Y Y Y 0-3000
GS30 30   Y Y Y Y Y 0-3000
GS35 35   Y Y Y Y Y 0-3000
GS40 40   Y Y Y Y Y 0-3000
Read More Data
