Tracked Mobile Stacker Conveyor

TMC Tracked Mobile Stacker Conveyor

A versatile solution for aggregate processing, the TMC Series can operate independently or integrate into a multi-equipment train. With lengths up to 31m and a capacity of 1,500t/h, it is frequently deployed in mobile crushing stations to optimize stockpiling efficiency and reduce site traffic.

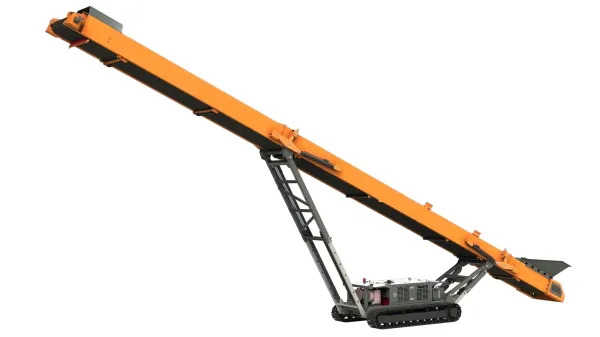

TMC Series Tracked Mobile Stacker Conveyor

Introduction

The TMC Series Tracked Mobile Stacker is engineered for high-performance material handling in the most demanding environments. As a robust crawler-mounted conveyor, it provides a seamless link between primary crushers and stockpiles. By replacing traditional wheel loader operations, the TMC series drastically reduces fuel consumption and labor costs while ensuring a continuous, high-capacity flow of aggregates, coal, and minerals.

Components of Tracked Stacker Conveyors

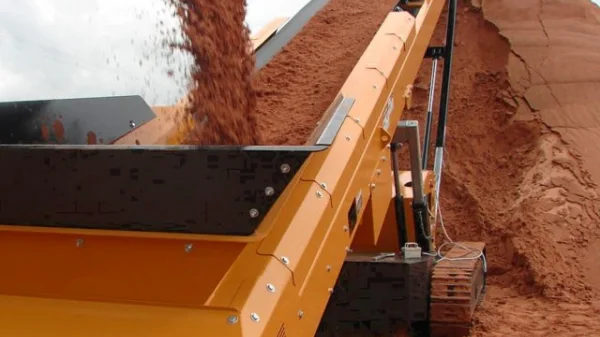

Materials Feed Hopper

Large hopper area will receive bulk materials from previous equipment.The foot of hopper are equipped with anti-spill rubber skirt to prevent material from spilling at the loading point. The feeding height is adjustable.
Foldable Belt Conveyor

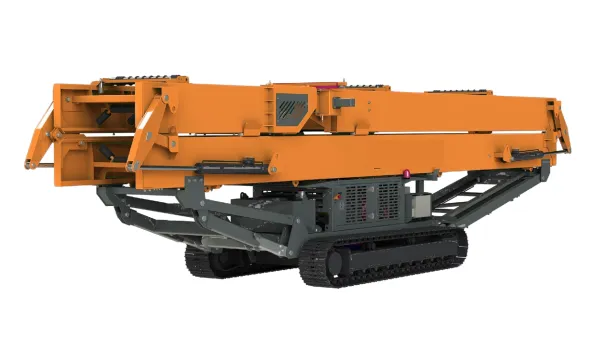

It is made of heavy duty folded mild steel plate. The belt conveyor can be folded using hydraulic cylinders. During transportation, it is easy to be put into 40ft containers or put on a trailer. For large handling capacity, the conveyor will use lattice steel frame.
Tracked Mobile Chassis

Use heavy duty steel tracks, with integrated webbed plate design for the rear telescopic mountings, to carry power system, belt conveyor system, hydraulic system, and control system, etc.
Eelectric Hydraulic System

Due to the three-pump system, all hydraulic components such as pumps, filters, tanks, valves, etc. can be easily maintained. The steel hydraulic tank is equipped with a level gauge and lockable filler cap.
Power Engine and Control

This tracked mobile conveyors integrate engine and control system. Start a system with security features. It is equipped with engine monitoring, tracking system and LED indication for recording faults. Controlling panel is mounted in secure canopy with lockable doors.

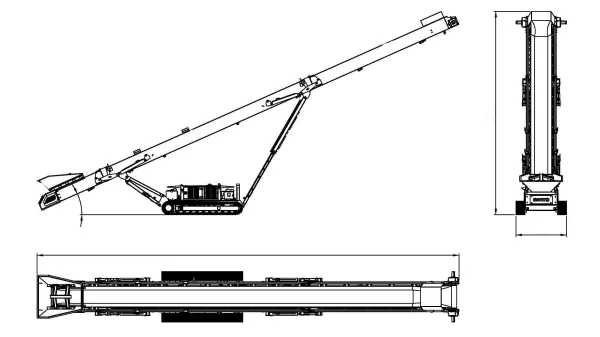

Tracked Mobile Conveyor Stockpile Volume

conical stockpile volume of tracked mobile conveyor

The conical stockpile volume can reach up to 2413m³

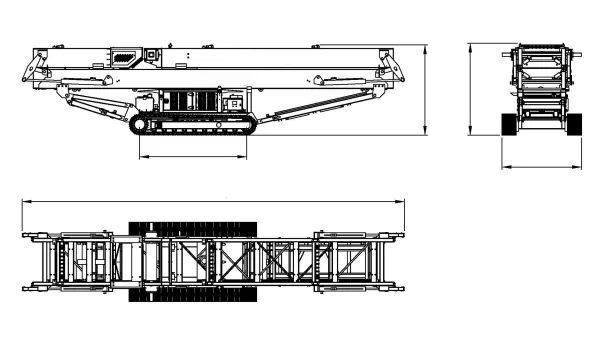

Tracked Mobile Conveyor Transportation

tracked mobile conveyors transportation

Our tracked mobile conveyors can put onto a trailer or 1x40ft container

As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their on-board conveyors to increase in size and length to cope with higher tonnages. Our tracked mobile conveyors has many features and applications.

Advantages & Highlights

High Mobility for Rapid Site Setup

The TMC series features a heavy-duty crawler undercarriage, allowing for rapid deployment and easy relocation across rugged quarry or mine sites. Its "plug-and-play" design ensures it can be integrated into existing mobile crushing and screening trains within minutes.
Robust Design for Heavy-Duty Applications

Built to handle high-tonnage throughput, the TMC tracked stockpiler supports capacities up to 1,500 TPH. With reinforced belt structures and high-torque drive systems, it is capable of conveying heavy ores and large-sized aggregates with minimal maintenance.
Less Wheel Loaders

Eliminate and Reduce need for Wheel loader on quarry site.
High Piling Capacity

The stockpiling capacity rates between 100TPH and 1500TPH.
Wide Range of Lump Size

The lump size of bulk material is up to 300mm (about 12 inch down).
Large Stacking Ability

The Conicial stockpile capacities is up to 3,500 tonnes (2,188 m3).
Easy to Transport

Able to be packed in 1 x 40ft container for shipping throughout the world.

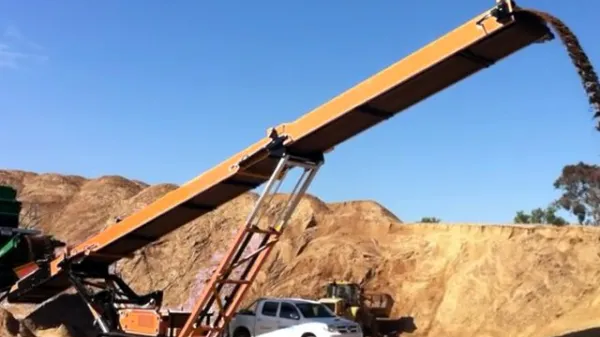

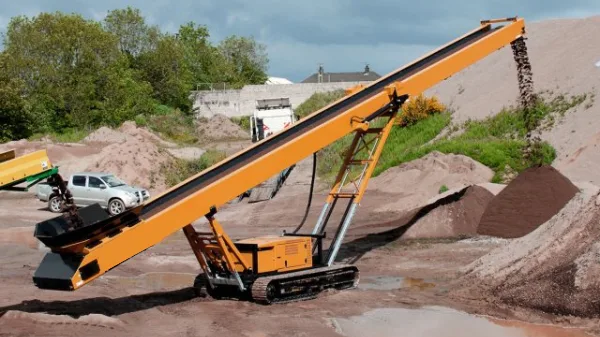

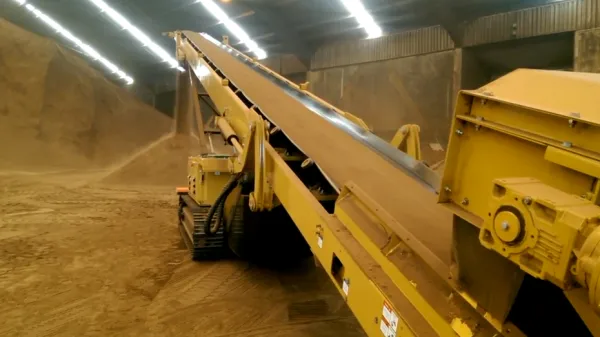

Application & Gallerys

The range of tracked mobile stacking conveyors ensures all applications are catered for from heavy duty primary jaw crushing applications to light duty screening applications.

Receive material from crushers and stack crushed and screened rocks.
Stockpiling crushed aggregate, sand, gravel, mineral ores, etc.
Stockpiling construction waste, top soil, coal, etc.
Work as link conveyors to connect our other conveyors.

Technical Parameters

Model	TMC1020	TMC1024	TMC1024L	TMC1031L
Length (m)	20 (65.61ft)	24 (78.74ft)	24 (78.74ft)	31 (101.70ft)
Belt Width (mm)	1000 (41.33inch)	1000 (41.33inch)	1000 (41.33inch)	1000 (41.33inch)
Discharging Height (m)	8.8 (28.87ft)	10 (32.80ft)	10.8 (35.43ft)	12.7 (41.66ft)
Stockpile Volume (m3)	856 (1119yd3)	1500 (1961yd3)	2085 (2727yd3)	3150 (4120yd3)
Stockpile Volume (t)	1396	2400	3340	5030
Capacity (t/h)	500	500-700	500-1500	500-1500
Note: L stands for lattice steel structure. The L in TMC1024L means that the cralwer conveyor body adopts lattice steel structure.
