SWS Portable Foldable Radial Stacker

Our portable radial stacker conveyors feature robust construction, hydraulic height adjustment, and high mobility, making them ideal for mining, quarrying, and port operations. The stacking capacity ranges from 300 t/h to 700 t/h and conveyor length ranges from 30ft (9m) to 100ft (30m). These mobile radial stackers can reduce your operational costs and improve terminal efficiency.

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

Our Wheeled Portable Radial Stacking Conveyor is a highly versatile and portable solution for bulk material handling. Engineered to eliminate the need for fixed installations and expensive wheel loader "load-and-haul" operations, this conveyor provides a flexible stockpiles. Its heavy-duty wheeled chassis ensures rapid on-site relocation, allowing you to optimize your workflow in diverse environments such as mines, aggregate plants, and logistics centers.

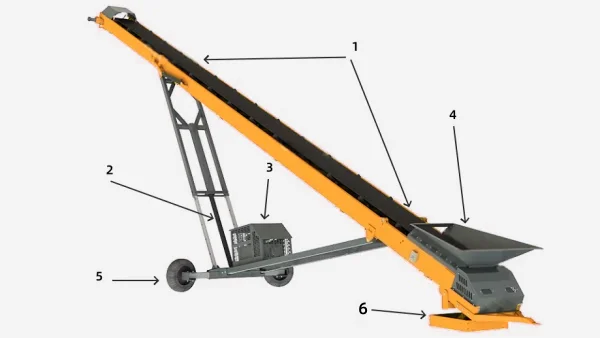

Excellent design concept for Portable Foldable Radial Stacker
This is a foldable radial stacking conveyor.

Excellent design concept

  1. Hydraulic folding allows easily containerized allowing for global transportation.
  2. Hydraulic lifting system to adjust the conveying and stacking angle.
  3. Optional power sources - diesel,direct electric, hybrial power(diesel/electric).
  4. The heavy steel structure design, firm structure, applicable to the harsh environment of the mine field and port operation.
  5. The wheel tires used for site movement are repositioned to perform the radial function, can turn 360°.
  6. Removable counterweight bracket, the user can choose local site material as the counterweight, easy to move.

Advantages & Highlights

  • Exceptional Mobility

    Equipped with heavy-duty pneumatic tires and a towable hitch for quick repositioning across different berths or sites.

  • Hydraulic Height Adjustment

    Features an integrated hydraulic system to adjust discharge heights, minimizing material segregation and dust emission.

  • High Throughput

    Designed to handle large volumes of bulk materials, with capacities ranging from 300 TPH up to 700 TPH.

  • Robust Construction

    Built with high-tensile steel and premium components to ensure long-term reliability in harsh operating conditions.

  • Quick Setup

    Modular design allows for rapid deployment, getting your operation up and running in minutes rather than days.

Application & Gallerys

  • Mining & Quarrying: Efficient stockpiling of iron ore, coal, sand, and gravel after primary/secondary crushing.
  • Port & Inland Terminals: Barge loading, ship unloading, and building buffer stockpiles for bulk commodities.
  • Construction Sites: Rapid transfer of aggregates and recycled materials for large-scale infrastructure projects.
  • Agriculture: Handling of grains, fertilizers, and other bulk agricultural products in warehouses or ports.

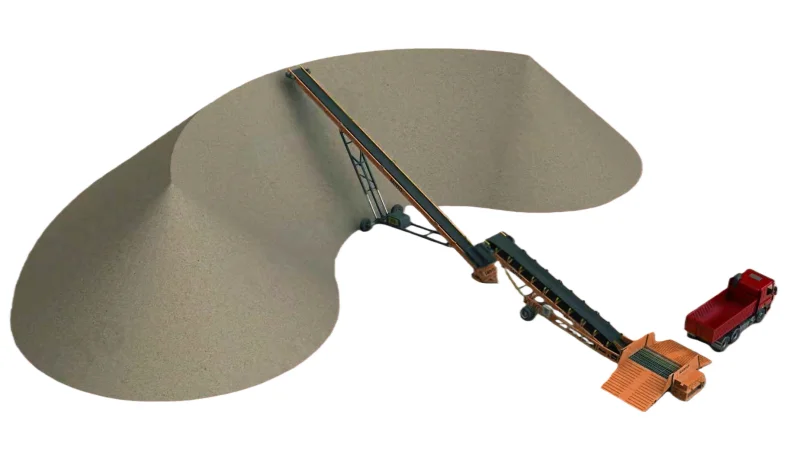

  • mobile radial stacker for aggregate crushing plant

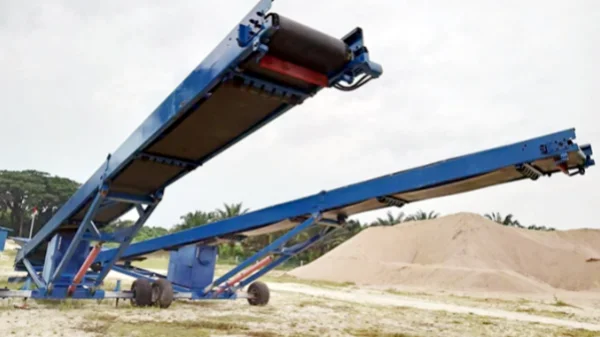

  • portable radial stacker conveyor for stockpiling processing

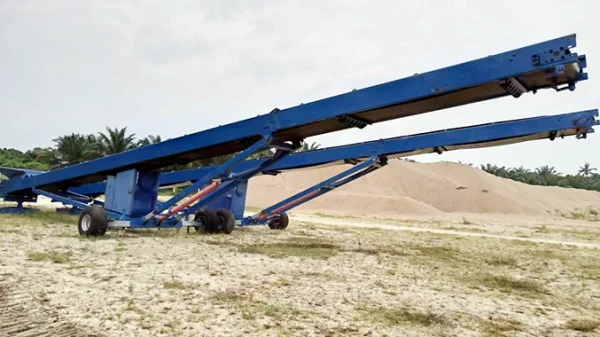

  • foldable radial stacker for crushing plant and stockpiling yard

Technical Parameters

Model Belt Width (mm) Length(m) Discharging Height (m) Stockpile Volume (m3) Capacity (T/H) Weight(T)
SWS809 800(31.5inch) 9 (30ft) 4.3 (14.1ft) 118.9 300 3.2
SWS812 800(31.5inch) 12 (40ft) 5.5 (18ft) 263.8 300 4.1
SWS815 800(31.5inch) 15 (50ft) 6.6(21.6ft) 472.2 300 4.9
SWS820 800(31.5inch) 20 (65ft) 8.7 (28.5ft) 1093 300 5.6
SWS824 800(31.5inch) 24 (80ft) 10(32.8ft) 1688.3 300 7
SWS830 800(31.5inch) 30 (100ft) 12.8 (41.9ft) 3654 300 10
SWS1009 1000(39.3 inch) 9 (30ft) 4.3 (14.1ft) 118.9 500 3.7
SWS1012 1000(39.3 inch) 12 (40ft) 5.5 (18ft) 263.8 500 4.6
SWS1015 1000(39.3 inch) 15 (50ft) 6.6(21.6ft) 472.2 500 5.4
SWS1020 1000(39.3 inch) 20(65ft) 8.7 (28.5ft) 1093 500 6.1
SWS1024 1000(39.3 inch) 24 (80ft) 10(32.8ft) 1688.3 500 7.5
SWS1030 1000(39.3 inch) 30(100ft) 12.8 (41.9ft) 3654 500 11.5
SWS1209 1200(47.2 inch) 9 (30ft) 4.3 (14.1ft) 118.9 700 4.7
SWS1212 1200(47.2 inch) 12 (40ft) 5.5 (18ft) 263.8 700 5.6
SWS1215 1200(47.2 inch) 15 (50ft) 6.6(21.6ft) 472.2 700 6.4
SWS1220 1200(47.2 inch) 20 (65ft) 8.7 (28.5ft) 1093 700 7.1
SWS1224 1200(47.2 inch) 24 (80ft) 10(32.8ft) 1688.3 700 8.5
SWS1230 1200(47.2 inch) 30(100ft) 12.8 (41.9ft) 3654 700 13
