Pipe Conveyor Belt

Pipe conveyor belts offer a versatile and efficient solution for a variety of material handling needs, particularly in environments where environmental protection and space constraints are important.

Pipe Conveyor Belt Catalog

  • Product Introduce
  • Advantages
  • Application & Gallery
  • Technical Parameters
Send A Request

Introduction

A pipe conveyor belt, also known as a pipe conveyor belt, is a type of conveyor belt that forms a closed tube shape, allowing materials to be transported in a fully enclosed manner. This design provides several benefits, including the ability to handle difficult terrains, reduced spillage and dust, and protection of the conveyed material from environmental elements.

Construction of Pipe Conveyor Belts

  1. Base Belt: The main body of the belt, made from robust materials like rubber or synthetic compounds, provides the necessary strength and flexibility.
  2. Edges: The edges of the belt are designed to overlap and form a tube, ensuring a tight seal to keep the material contained within the belt.
  3. Carrying Side: The inside of the tube where the material is conveyed, designed to withstand wear and abrasion from the transported material.
  4. Return Side: The outside of the tube, which contacts the conveyor structure and rollers, often made to resist external wear and tear.

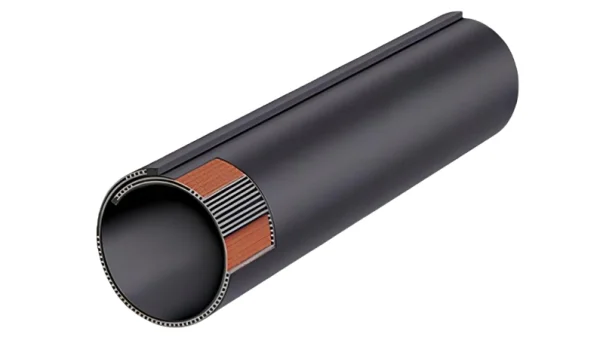

Tubular Pipe Conveyor Belt
Tubular Pipe Conveyor Belt

Types of Pipe Conveyor Belts

  1. Fabric pipe Belts: Designed for general bulk material handling applications with standard load and environmental conditions.
  2. Steel Cord Pipe Belts: Built to handle heavier loads and more abrasive materials, offering enhanced durability and strength.
  3. Specialty Pipe Belts: Customized for specific applications, such as heat-resistant, oil-resistant, or flame-retardant belts.

Advantages & Highlights

  • Enclosed Transportation

    The belt forms a closed tube, protecting the conveyed material from external contaminants and preventing spillage and dust emission.

  • Flexible Routing

    The pipe design allows the conveyor to navigate sharp curves and steep inclines, making it suitable for complex routes and difficult terrains.

  • Environmental Protection

    Provides protection against environmental factors such as wind, rain, and extreme temperatures, preserving the quality of the transported material.

  • Heat and Chemical Resistance

    Specially formulated belts can resist high temperatures and exposure to various chemicals, making them suitable for a wide range of materials.

  • Reduced Maintenance

    Minimizes material spillage and reduces cleaning requirements, leading to lower maintenance costs.

  • Efficient Space Utilization

    Can be installed in areas with limited space due to its ability to handle vertical and horizontal curves.

Application & Gallerys

  • Mining and Quarrying: Ideal for transporting bulk materials like coal, ores, and aggregates over long distances and challenging terrains.
  • Cement and Building Materials: Used for conveying cement, clinker, and other building materials while preventing dust and spillage.
  • Power Plants: Efficiently transports coal and other fuels, reducing the environmental impact and ensuring clean operations.
  • Ports and Terminals: Suitable for handling bulk cargo, providing an enclosed system to prevent contamination and loss of materials.
  • Chemical Industry: Ensures safe and clean transportation of chemicals and hazardous materials.

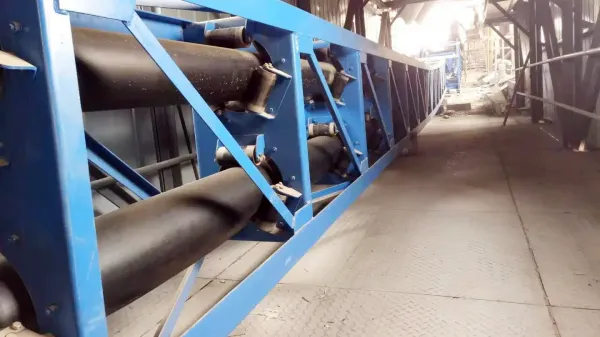

  • pipe conveyor belt

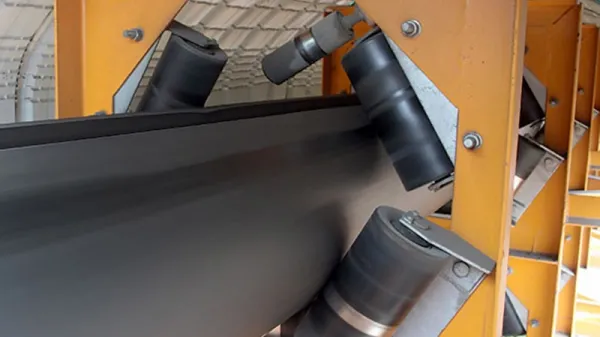

  • pipe conveyor belt

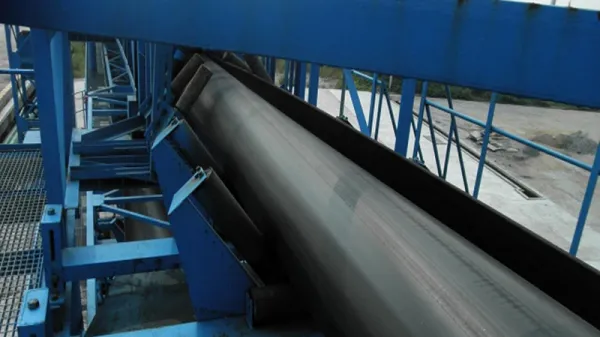

  • pipe conveyor belt

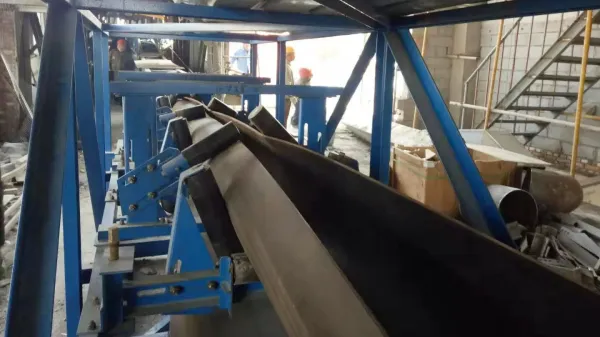

  • pipe conveyor belt

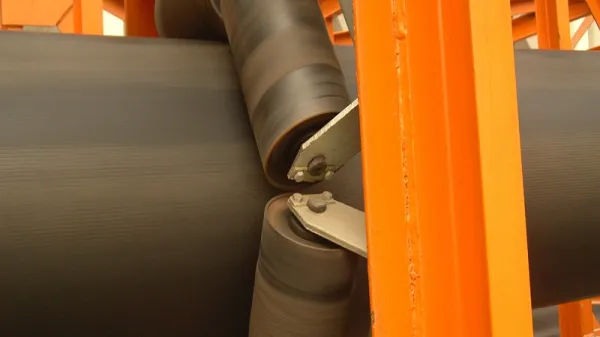

  • pipe conveyor belt

Technical Parameters

Belt Type Minimum Breaking
Strength Per Width Of Belt
(N/Mm)		 Maximum Cord
Diameter (Mm)		 Minimum Breaking
Strength Of Cord (KN)		 Cord Pitch
(Mm)		 Minimum
Thickness Of
Covers (Mm)
ST630 630 3.0 7.0 10.0 4.0
ST800 800 3.5 8.9 10.0 4.0
ST1000 1000 4.0 12.9 12.0 4.0
ST1250 1250 4.5 16.1 12.0 4.0
ST1400 1400 5.0 20.6 14.0 4.0
ST1600 1600 5.0 20.6 12.0 4.0
ST1800 1800 5.6 25.5 13.5 4.0
ST2000 2000 6.0 25.6 12.0 4.0
ST2250 2250 5.6 26.2 11.0 4.0
ST2500 2500 7.2 40.0 15.0 5.0
ST2800 2800 7.2 39.6 13.5 5.0
ST3450 3150 8.1 50.5 15.0 5.5
ST3500 3500 8.6 56.0 15.0 6.0
ST4000 4000 8.9 63.5 15.0 6.5
ST4500 4500 9.7 76.3 16.0 7.0
ST5000 5000 10.9 91.0 17.0 7.5
ST5400 5400 11.3 98.2 17.0 8.0
ST6300 6300 12.8 130.4 19.5 10.0
ST7000 7000 13.5 142.4 19.5 10.0
ST7500 7500 15.0 166.7 21.0 10.0
Fabric Pipe Conveyor Belt
Carcass Type Strength (KN/m) No. of Pipes Width
NN/EP 160 2 300-800
NN/EP 250 2~3 400-1000
NN/EP 315 2~4 500-1600
NN/EP 400 2~4 600-1600
NN/EP 500 2~5 750-1600
NN/EP 630 3~6 750-2000
NN/EP 800 3~6 750-2200
NN/EP 1000 3~6 750-2200
NN/EP 1250 3~6 900-2200
NN/EP 1400 3~6 1000-2200
NN/EP 1600 4~6 1050-2200
NN/EP 2000 4~6 1050-2400
NN/EP 2500 5~6 1200-2400
NN/EP 3150 5~6 1400-3000
Cover Grade Standards
Grade Standard Abrasion MM3 Breaking strength N/MM2 Elongation at break %
W DIN22102 90 18 400
X DIN22102 120 25 450
Y DIN22102 150 20 450
Z DIN22102 200 15 350
W DIN22131 90 18 400
X DIN22131 120 25 450
Y DIN22131 150 20 400
K DIN22131 200 20 400
H ISO15236 120 24 450
L ISO15236 200 18 350
K ISO15236 200 15 350
I RMA 170 17 400
II RMA 200 14 400
