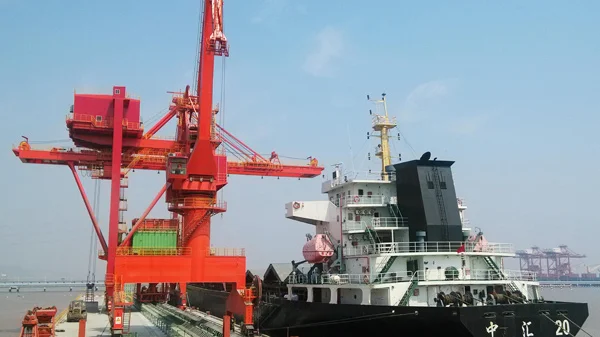

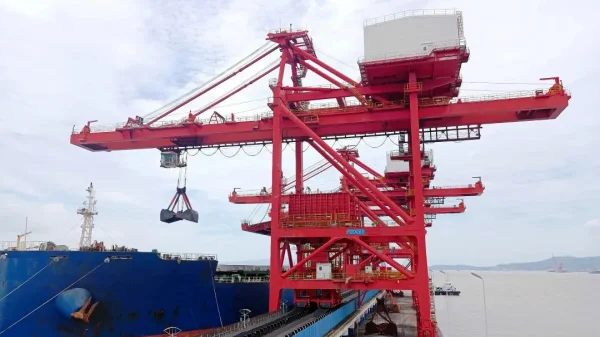

Grab Ship Unloader

Grab ship unloaders are essential for efficient and flexible unloading of bulk materials in ports and industrial facilities. Their versatility, efficiency, and durability make them suitable for handling a wide range of materials and improving operational productivity. Proper maintenance and operation are crucial for maximizing the performance and lifespan of these unloaders.

Components of Grab Ship Unloader

• Grab Bucket: A clamshell bucket that can open and close to scoop up and release material. Buckets are made from durable materials to handle abrasive bulk cargo.
• Boom: A long arm that extends over the ship's hold. The boom can be adjusted and rotated to reach different areas within the hold.
• Hoist System: Raises and lowers the grab bucket. The hoist system typically includes winches, cables, and pulleys.
• Trolley: Moves the grab bucket along the length of the boom, allowing it to reach various positions within the ship's hold.
• Support Structure: The framework that supports the boom and hoist system. This structure must be robust to handle the weight and movement of the equipment and materials.
• Operator Cab: A control cabin where the operator controls the movements of the grab bucket and boom.
• Discharge System: Transfers the material from the grab bucket to a conveyor system or directly to storage. This may include hoppers, chutes, or other mechanisms.

Grab Ship Unloader Drawing

Operation of Grab Ship Unloader

• Positioning: The boom is positioned over the area of the ship's hold to be unloaded.
• Lowering the Grab: The grab bucket is lowered into the hold using the hoist system.
• Scooping Material: The grab bucket closes to scoop up the material.
• Lifting and Transporting: The bucket is lifted and moved by the trolley along the boom to the discharge point.
• Discharging Material: The bucket opens to release the material into a hopper or conveyor system for further transport or storage.
