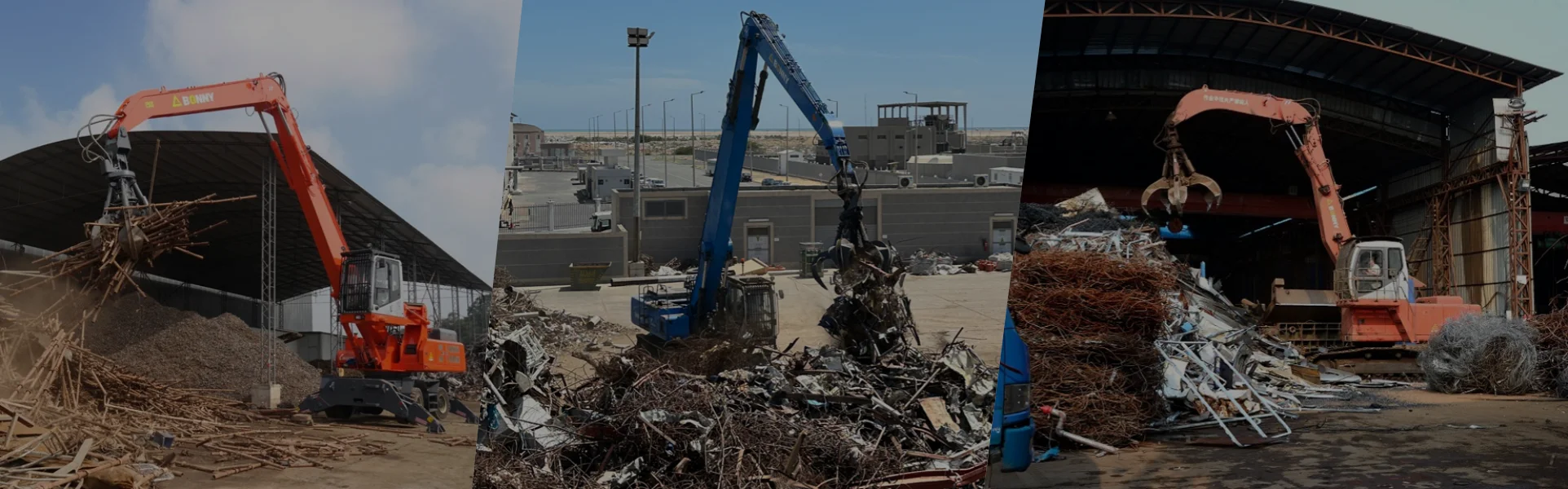

Material Handlers for Scrap Metal and Steel Mills

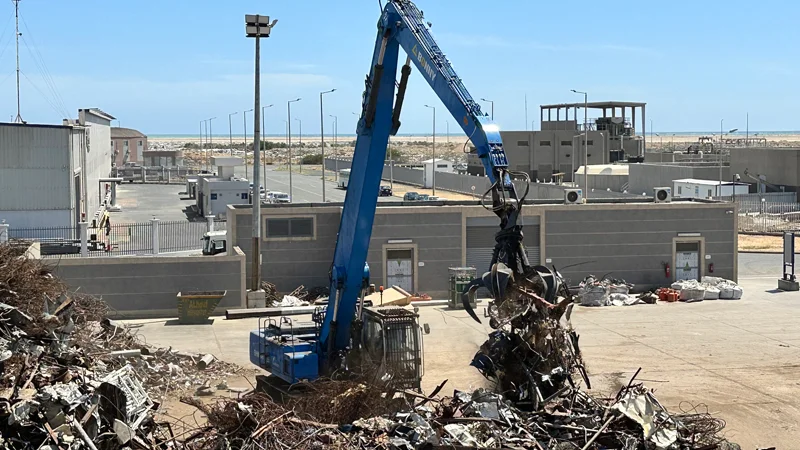

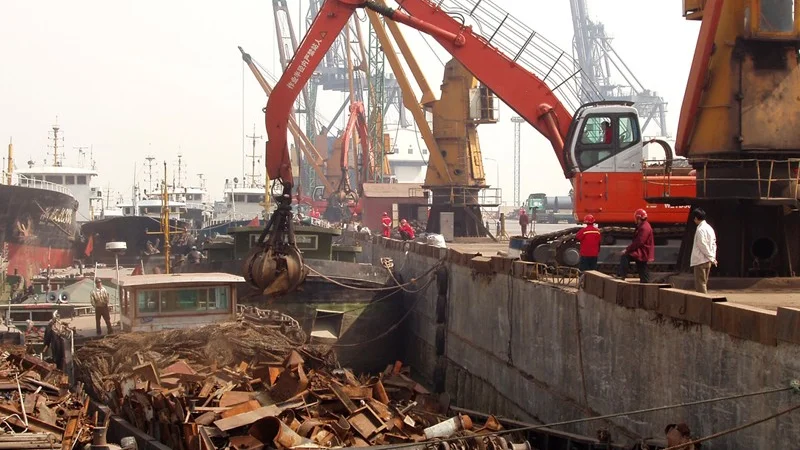

In a steel mill, a material handler is commonly used to move scrap between storage areas, processing equipment, transportation systems, and furnace charging areas.

A typical workflow may include:

A hydraulic material handler equipped with a suitable attachment can perform several of these operations without requiring separate machines for every task.

For example, a scrap grapple can pick up mixed steel scrap, while a magnet attachment can efficiently handle ferrous scrap and steel pieces. A clamshell bucket may be selected for certain bulk materials where controlled bucket loading is required.

The machine should be selected according to the actual handling task rather than machine size alone.

Key parameters include:

1. Material type – light scrap, heavy steel scrap, structural steel, steel coils, or mixed metal.
2. Material density and piece size – determines attachment capacity and hydraulic requirements.
3. Working radius – affects required lifting capacity and machine stability.
4. Required lifting height – important for trucks, railcars, hoppers, shears, shredders, and furnace charging.
5. Attachment type – grapple, magnet, orange peel grapple, clamshell bucket, or customized tool.
6. Ground conditions – determines whether tracked or wheeled equipment is more appropriate.
7. Operating hours – high-cycle applications require a machine designed for continuous heavy-duty operation.
8. Power system – diesel, electric, or dual-power configuration.
9. Maintenance requirements – hydraulic components, boom structure, pins, bushings, and attachment wear parts should be accessible for service.

For high-volume scrap handling, it is important to evaluate cycle time and tonnes handled per hour, not simply rated lifting capacity.

A conventional excavator can perform some material handling tasks, but a dedicated material handler is generally configured around lifting, reaching, sorting, and repetitive material handling rather than excavation.

For scrap and steel mill applications, a dedicated material handler can be configured with:

• Longer working reach
• Elevated operator visibility
• Larger hydraulic attachments
• Heavy-duty lifting components
• Specialized scrap grapples or magnets
• Improved stability for repetitive lifting
• Configurations optimized for high-cycle material handling

The appropriate machine depends on the actual working envelope, material weight, attachment, and production requirement.

What is a material handler used for in a steel mill?

A material handler is used to load, unload, sort, stockpile, transport, and feed scrap steel and other materials within steel mills and metal processing facilities.

What attachment is best for scrap steel?

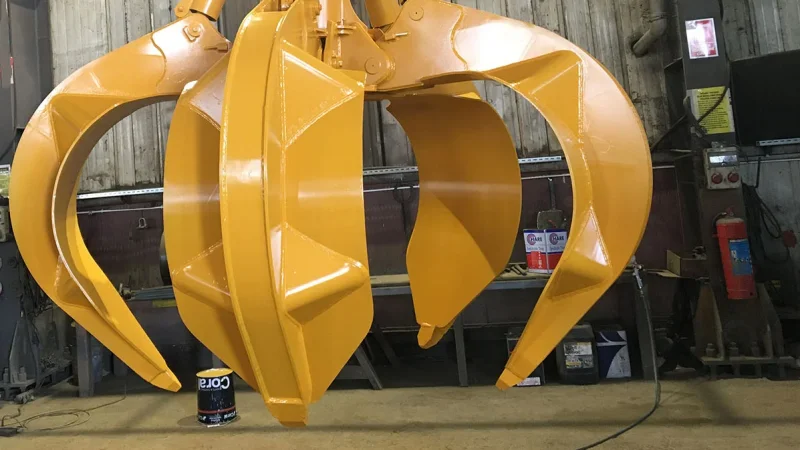

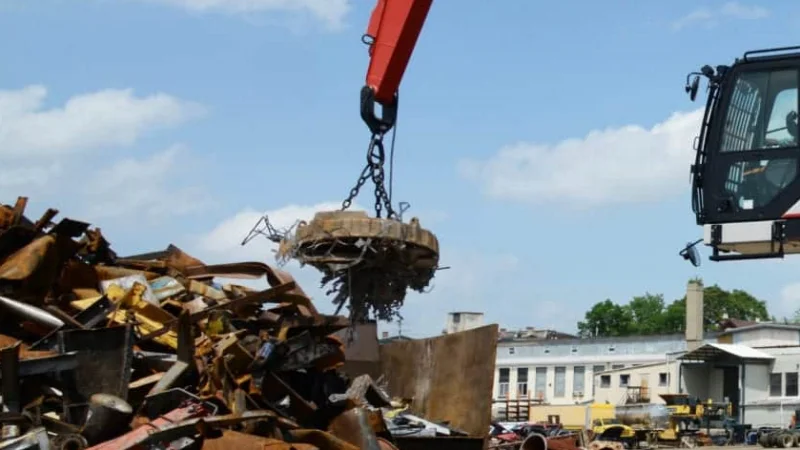

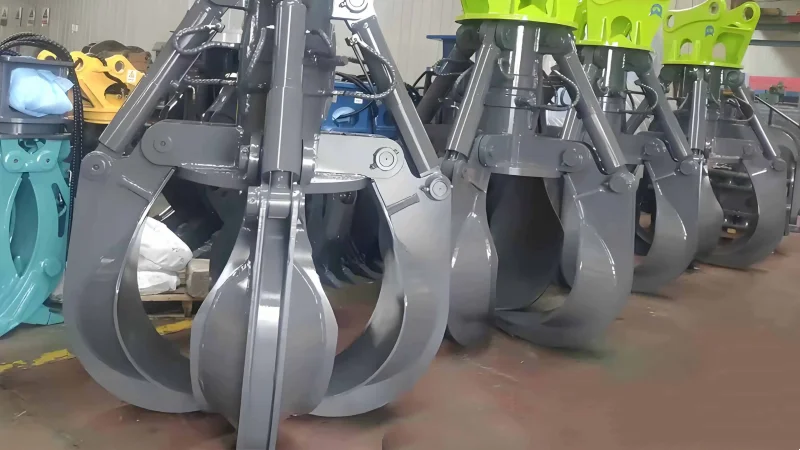

A hydraulic scrap grapple is commonly used for irregular and mixed scrap steel. An electromagnet can be effective for ferrous scrap, while orange peel grapples are suitable for loose and bulky scrap.

Are tracked or wheeled material handlers better for scrap yards?

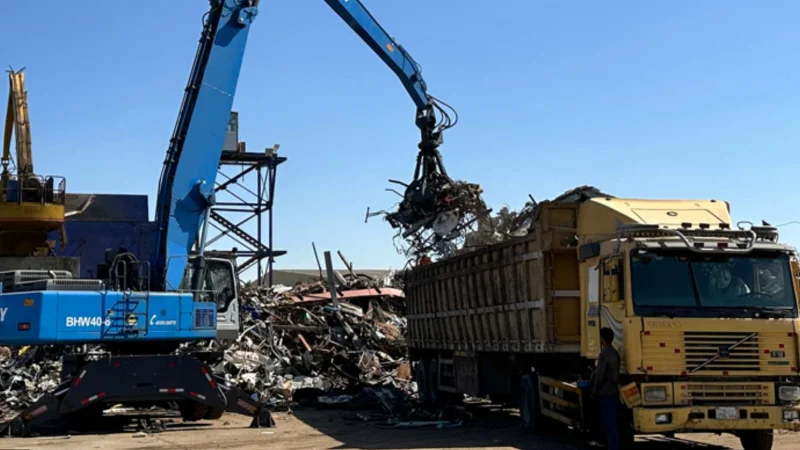

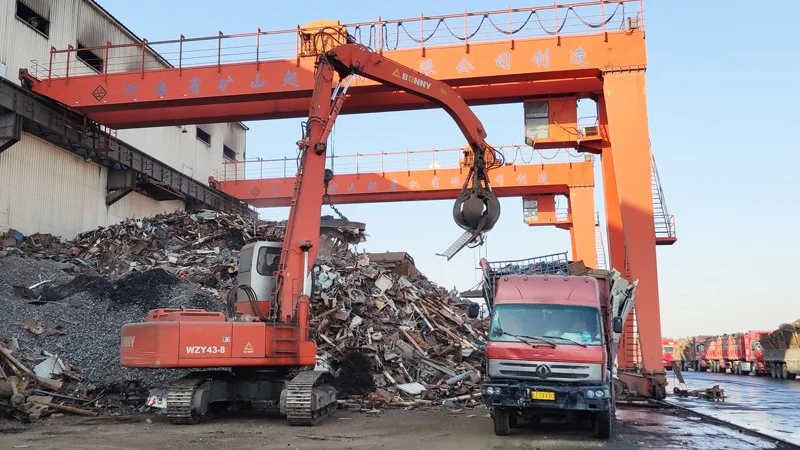

Neither configuration is universally better. Tracked machines are generally suited to difficult or uneven ground, while wheeled machines provide faster travel on paved or prepared surfaces. The choice should match the yard layout and operating conditions.

Can material handlers be used for furnace charging?

Yes. Properly configured material handlers can move and feed scrap toward furnace charging systems. The required machine size and attachment depend on scrap weight, working radius, lifting height, and charging arrangement.

Are electric material handlers suitable for steel mills?

Yes. Electric material handlers can be suitable for indoor or high-utilization applications where reducing local emissions and noise is important, provided that the site's electrical infrastructure and duty cycle support the machine.
