The tracked mobile concrete placing machine is widely used in concrete placing in construction projects. The placing radius of our mobile concrete placer can reach 60m. The concrete placing capacity can be up to 250m³/h. MMSTACKER is a mobile concrete placing machine manufacturer in China. We also can provide customized services to meet different concrete placing applications.
Discover our Mobile Concrete Placing Machine
By Category
Mobile Concrete Placing Machine
Mobile Concrete Placing Machine Applications
Tracked mobile concrete placing machine is suitable for conveying concrete of various gradations and various types of granular materials. Our mobile concrete placers are widely used to deliver concrete and other granular materials to the working surfaces of structures in the construction of water conservancy and hydropower projects, highways, bridges, civil buildings, and national defense projects. They can also be used for loading and unloading granular materials at ports, mines, and power plants.

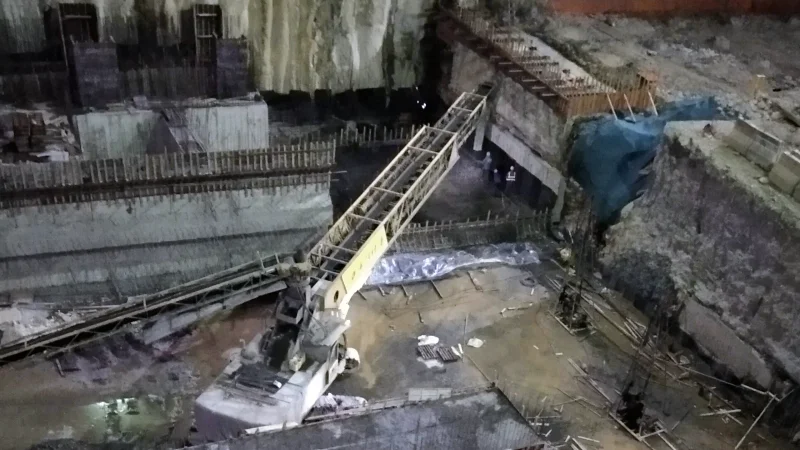

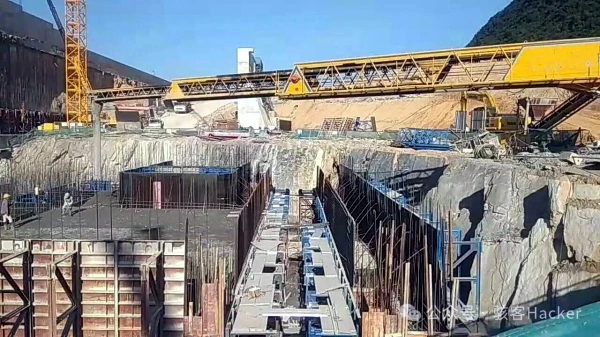

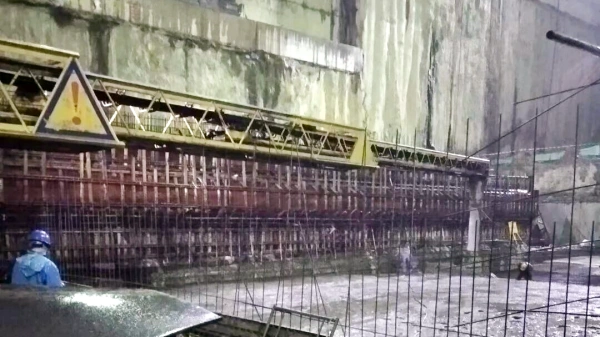

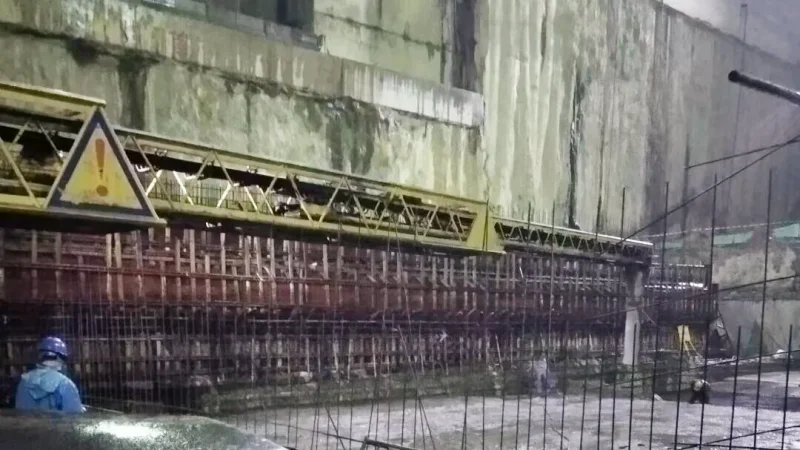

Concrete Placing Machine for Dam Building
Our concrete placing machines can be used for dam concrete pouring in the field of hydraulic engineering.
Concrete Placing Machine for Road Building
Our concrete placing machines can be used for road concrete pouring in the field of hydraulic engineering.
Mobile Concrete Placing Machine Component

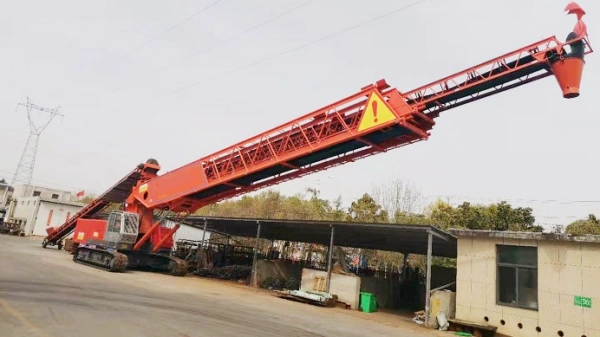

Tracked mobile concrete placing machine is a kind of construction equipment, which uses crawler tracks to move, and has a telescopic boom belt conveyor for concrete transportation. The upper part of the concrete placing machine can rotate to achieve large-scale concrete distribution.

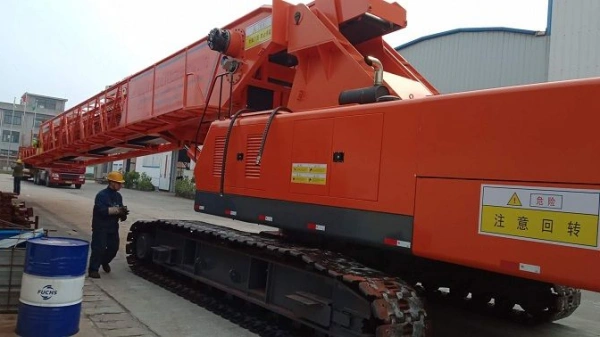

- Crawler chassis
- Tripod support
- Placing boom telescopic conveyor

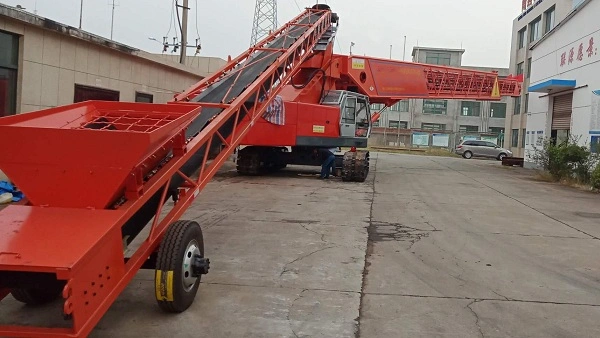

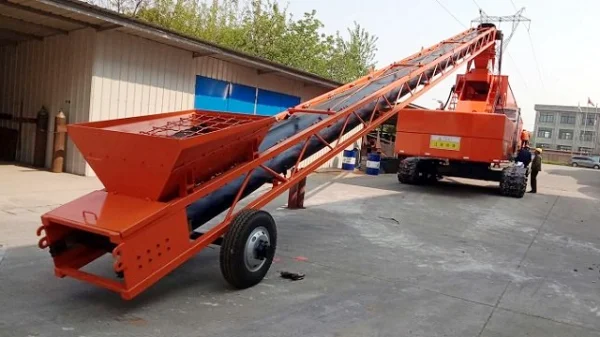

- Receiving hopper
- Feeding conveyor
- Counterweight
- Control cylinder
Mobile Concrete Placing Machine Technical Parameters
| 1 | Model | LBJ600-42 | LBJ600-60 |
| 2 | Rated conveying capacity | 100-150 m³/h / 270 m³/h | |
| 3 | Maximum placing radius | R=42m | R=60m |
| 4 | Minimum placing radius | R=18.5m | R=22m |
| 5 | Placing boom slewing angle | 360° | 360° |
| 6 | Maximum elevation angle | 25° | |
| 7 | Minimum depression angle | -10° | |
| 8 | Placing boom telescopic speed | 4m/min | |
| 9 | Maximum aggregate conveyed in concrete | 80mm≤15° | |
| 10 | Maximum aggregate conveyed in concrete | 80mm≤20° | |
| 11 | Maximum aggregate conveyed in concrete | 40mm≤25° | |
| 12 | Belt width | B=600mm | |
| 13 | Belt conveying speed | V=2~4.2m/s | |
| 14 | Placing belt drive | Hydraulic motor | |
| 15 | Loading belt drive | Hydraulic motor | |
| 16 | Placing boom telescopic drive | Hydraulic motor | |
| 17 | Placing boom (Placing belt) | Three-section telescopic,U-shaped support idler | Four-section telescopic,U-shaped support idler |
| 18 | Loading belt | U-shaped support idler | |
| 19 | Chassis | QUY Crawler | |
| 20 | Travel speed | 1.3km/h | 1km/h |
| 21 | Crawling capability | 15.00% | 15.00% |
| 22 | Diesel engine model | / | / |
| 23 | Diesel engine output power | 144kw | 264kw |
| 24 | Total weight | About 83t | About 135t |
Why to Choose Our Mobile Concrete Placing Machine?
-
Easy to Operate
Our concrete placing machine is easy to operate. Travel, luffing, and slewing operations are controlled by hydraulic system.
-
Large Placing Area
The extension and retraction of the telescopic boom, and the driving of the loading conveyors, can be controlled via touchscreen controls or by push-buttons on standby electronic switches.
-
Precision Material Placing Design
Our mobile concrete placer is equipped with a load control sensor, telescopic safety limit controllers, and a luffing angle indicator. If any load or position parameter exceeds the set value, the system will generate an alarm and automatically stop the corresponding parameter control.
-
Separate Design Structure
The operating speeds of the concrete placing conveyor and the feeding conveyor can be set and adjusted separately.
-
Screens for Easy Monitoring

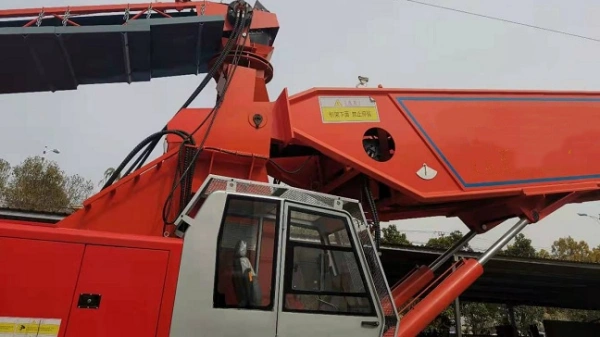

The operator's compartment is also equipped with a monitoring display and work recorder for visual monitoring and recording of conveyor operation.
